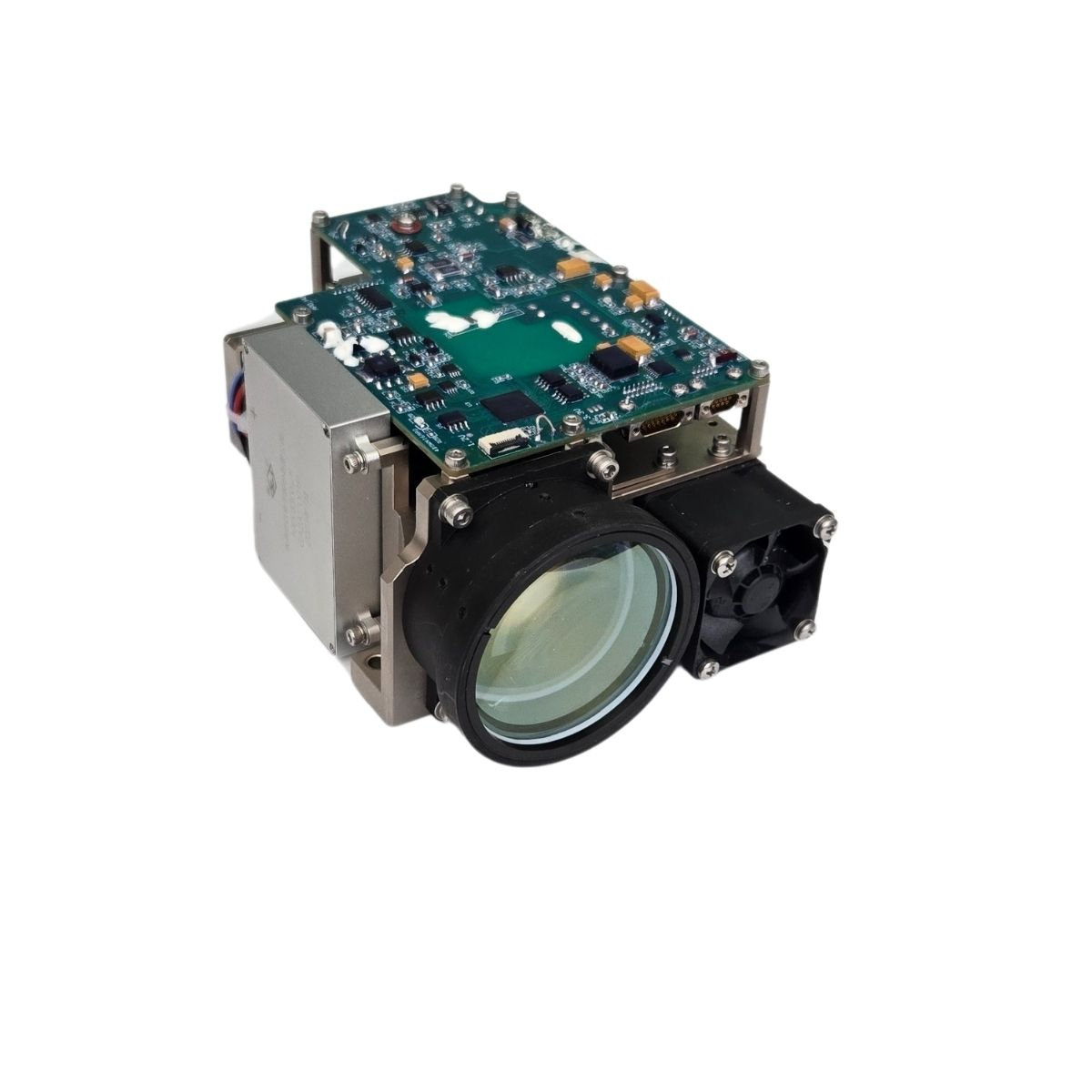

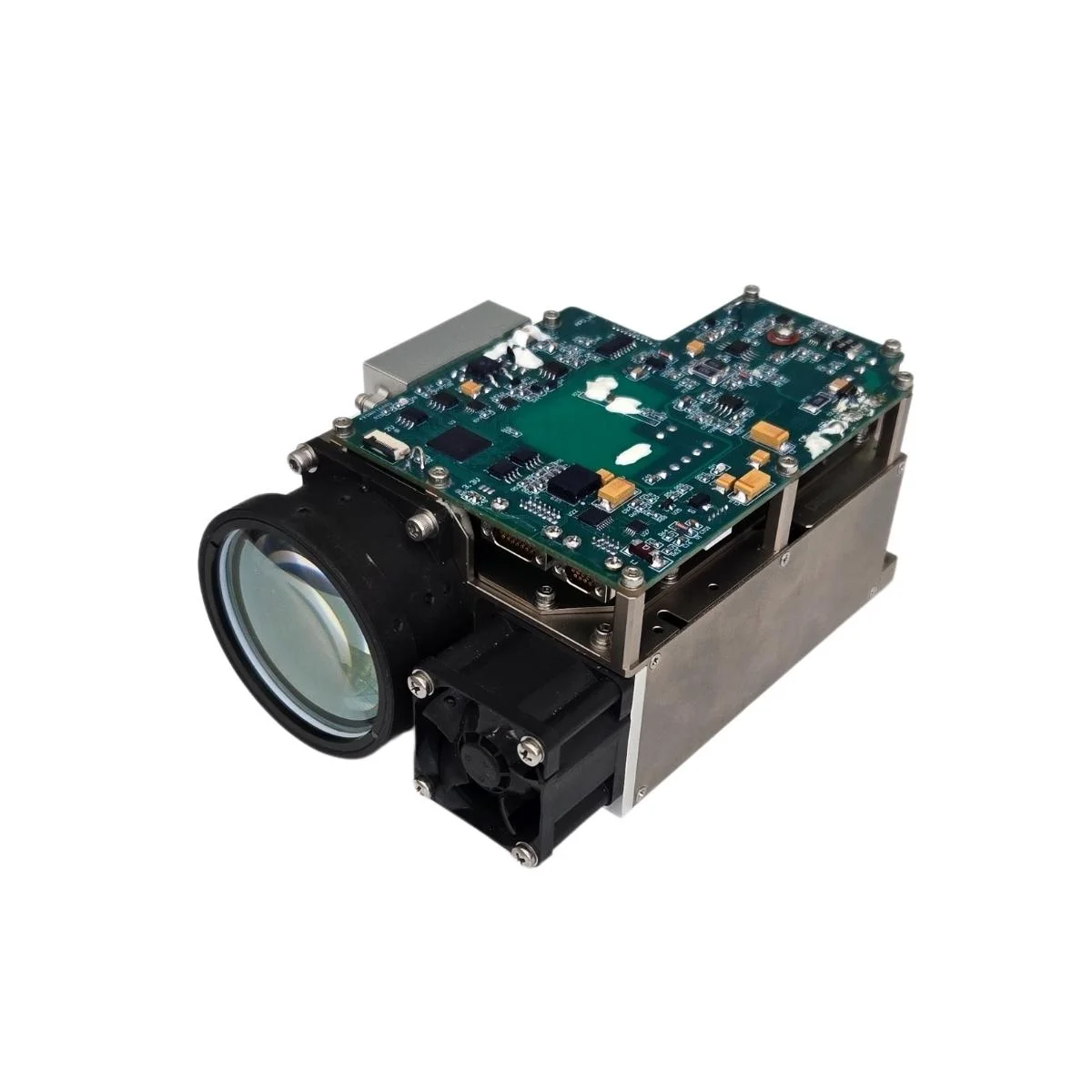

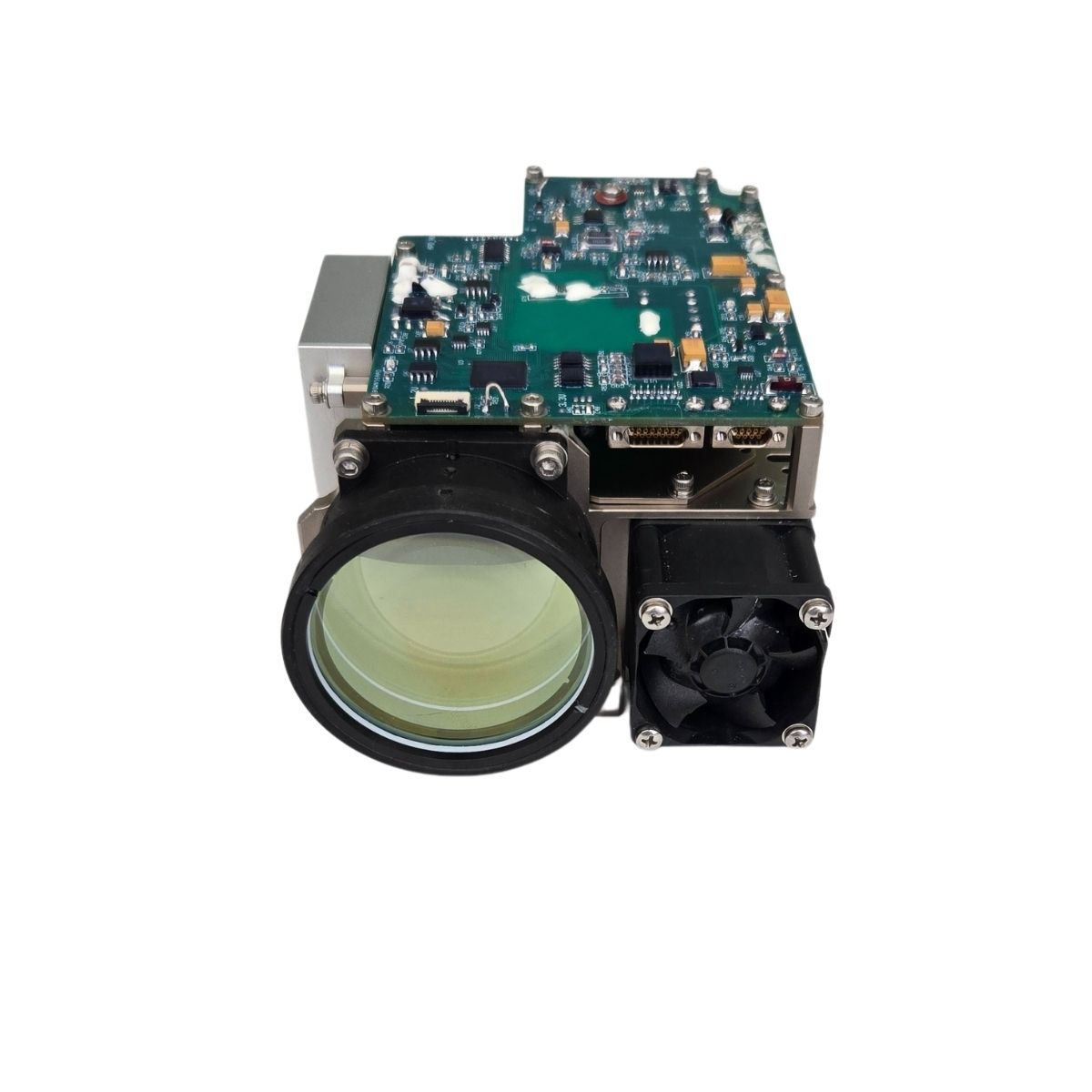

1064nm Laser Ranging Target Designator 20km
DESCRIPTION
The LDR80K2-02 Laser Designator adopts a transceiver co-aperture lens. It uses an LDA-pumped Nd: YAG crystal combined with an electro-optical Q-switching technology solution to achieve a typical 1064nm pulsed laser output. The single-pulse energy is 80 mJ, and the beam divergence angle is 0.25mrad. It employs an adaptive non-temperature-control technology, allowing it to start working immediately. The entire device can operate for 90 seconds, pause for 60 seconds within Man ambient temperature range of -40°C to 60°C; 4 cycles (at normal or low temperatures); 1 cycle (at a high temperature of 60°C). It can be compatibly installed and applied in miniaturized electro-optical pods on airborne platforms, loitering munitions, and other combat platforms, realizing continuous ranging and periodic illumination of targets. It is an important laser device in the implementation of semi-active systems.
TECHNICAL SPECIFICATIONS
| Parameter Indicators | |
| Module | LDR80K2 |
| Pump Source | Laser LD (Laser Diode) Pumping |
| Cooling Method | Passive cooling, no temperature control |
| Working Mode | Laser Ranging, Laser target indication |
| Operating Wavelength | 1064nm±1nm |
| Pulse Energy | ≥80mJ |
| Laser Energy Stability | Within a single irradiation cycle, the pulse energy fluctuation does not exceed 10% of the average energy. |
| Pulse Width | ≥15ns±5ns |
| Beam Divergence Angle | ≤0.25mrad |
| Stability of The Laser Optical Axis | ≤0.05mrad |
| Ranging performance | |
| Ranging frequency | 1~20Hz |
| Continuous Laser Ranging Time | 5min(1Hz)/1min (5Hz)/20S（20Hz） |
| Minimum measuring distance | ≤300m |
| Maximum measuring distance |
≥20km (Under the conditions of a target with a size of 2.3m×2.3m, a diffuse reflectance coefficient of not less than 0.2, a visibility of not less than 23 km, and a relative humidity of not more than 70%） |
| Ranging accuracy | ±1m |
| Rate of successful measurement | 98% |
MECHANICAL DIMENSION(mm)
