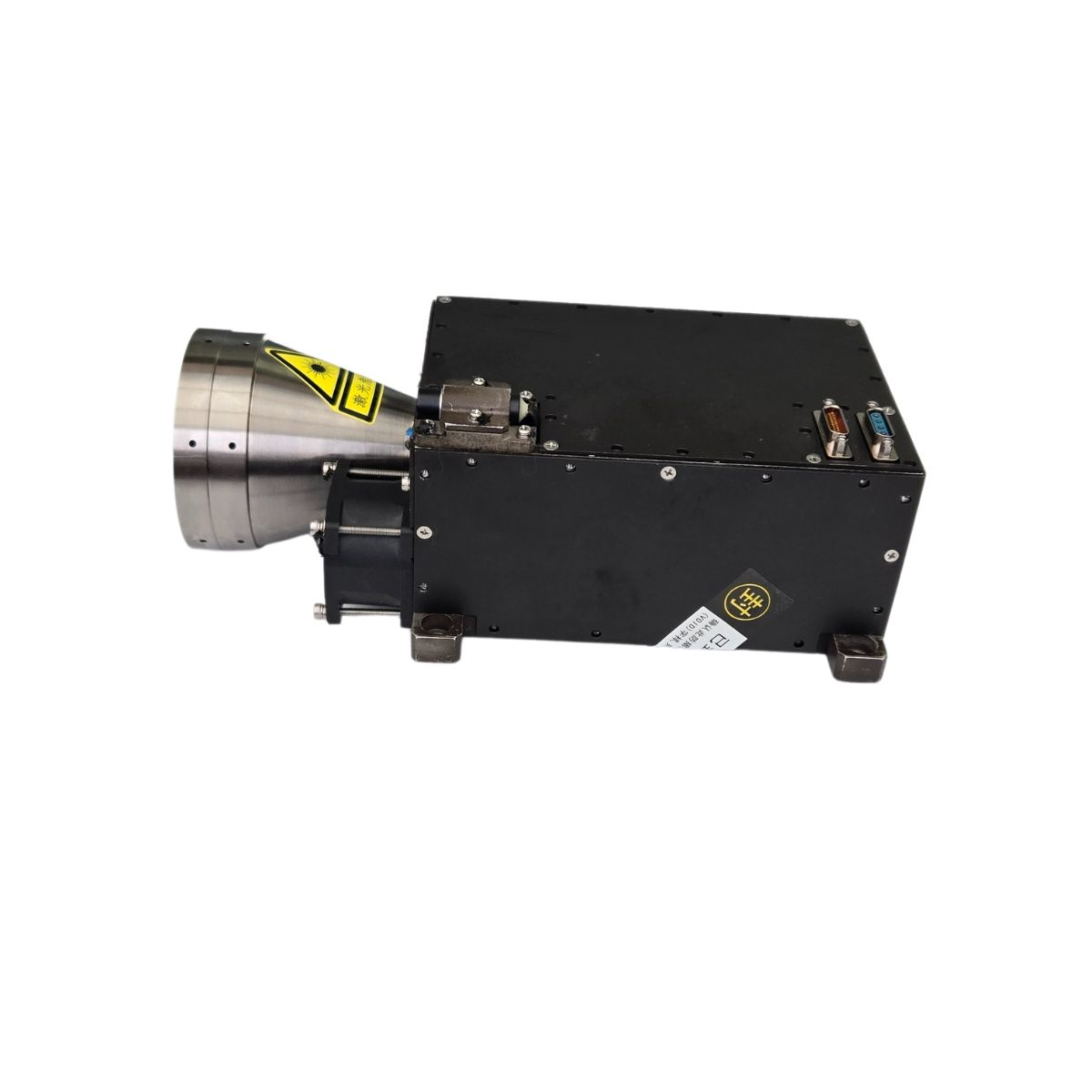

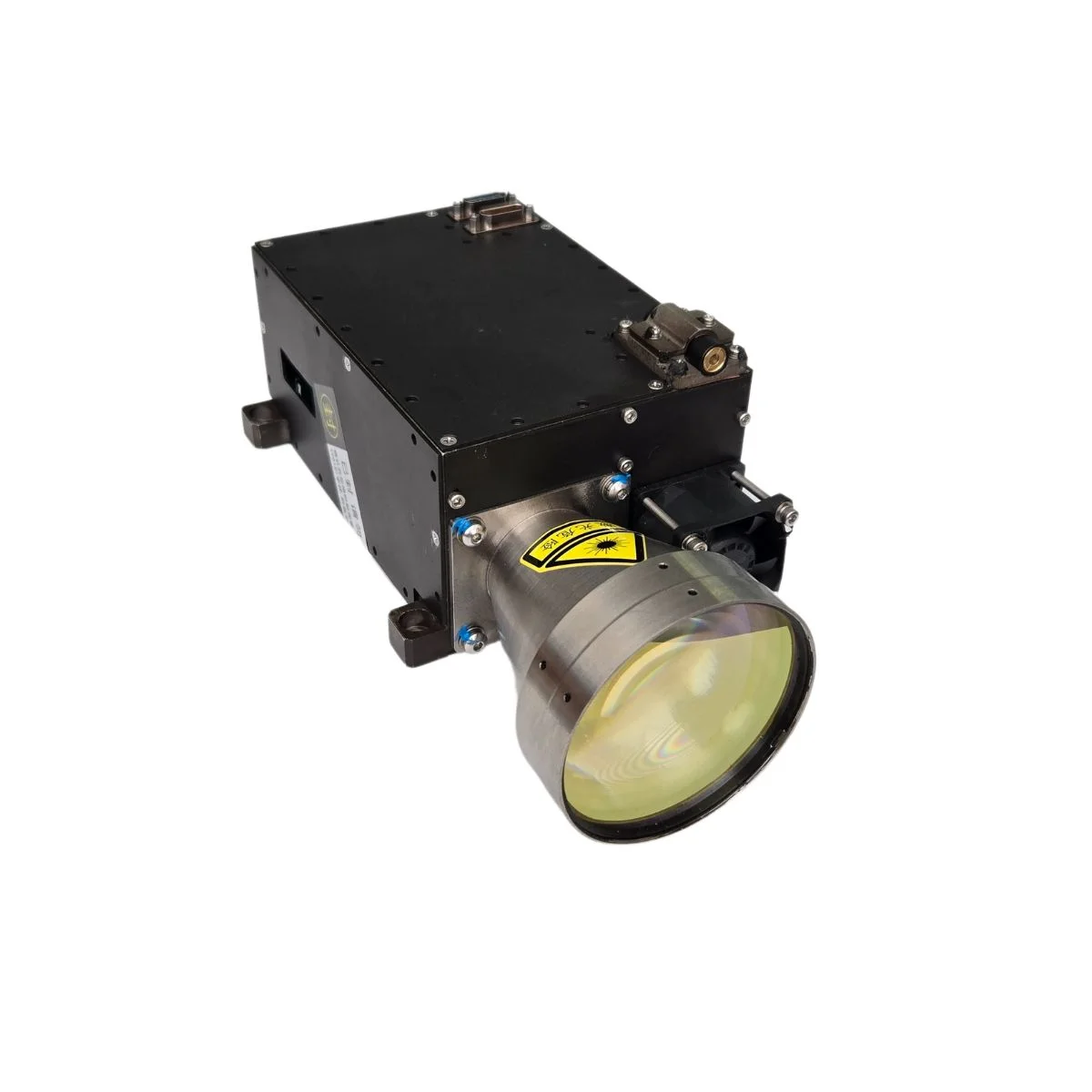

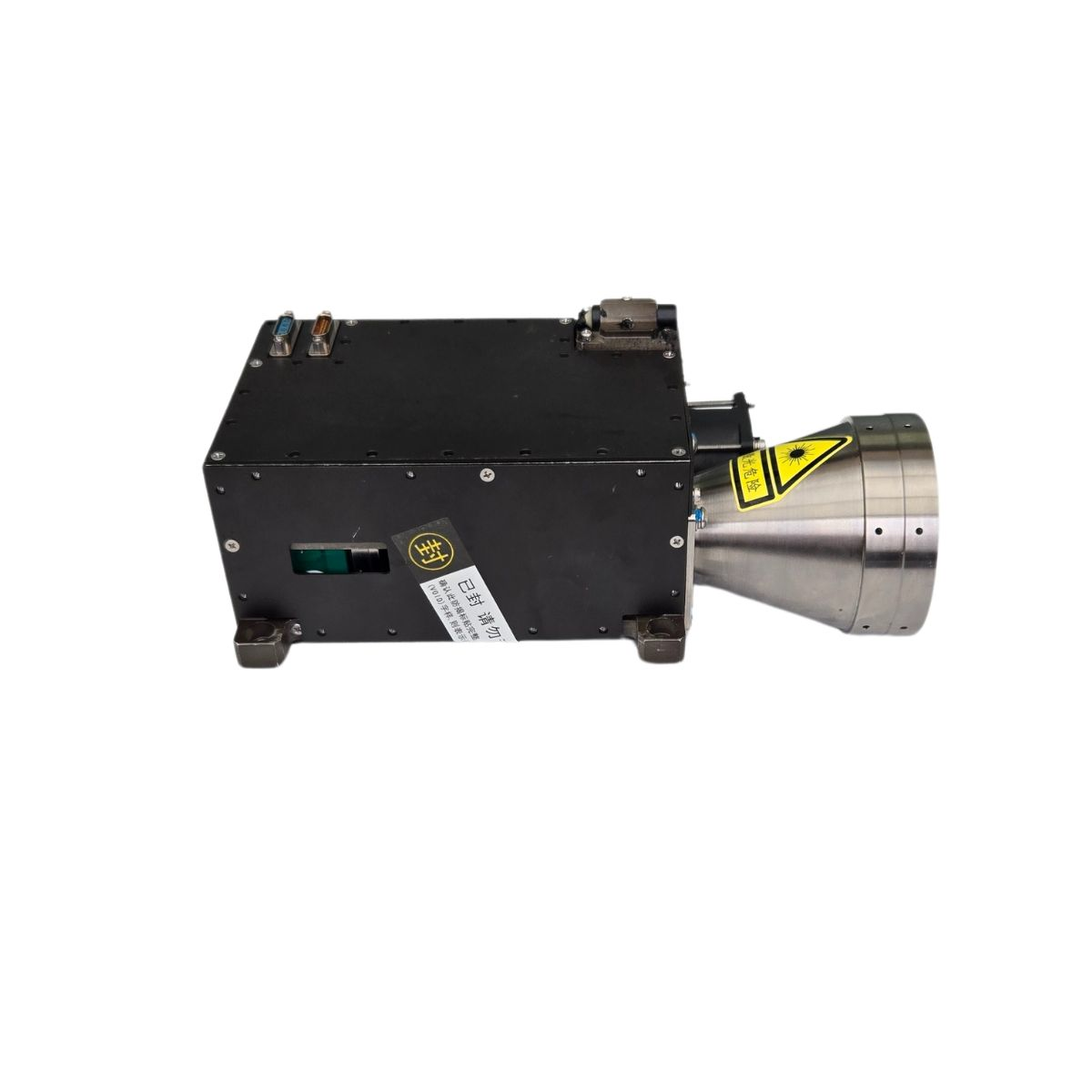

1064nm Laser Ranging Target Designator 25km
DESCRIPTION
The 1064nm Laser Ranging Target Designator 25km is a cutting-edge device designed for ultra-long-distance measurement. It is capable of ultra-long-distance precision measurement, with a measurement distance of up to 25,000 meters or even further, and the effective target indication coverage range can also reach 15,000 meters or even further.
For various aircraft such as drones, fighters, and reconnaissance aircraft, space and payload resources are very valuable. Therefore, the compact design of the 1064nm Laser Ranging Target Designator 25km allows it to be easily integrated into the optoelectronic pods and other equipment of the aircraft.
Airborne applications: For various aircraft, such as drones, fighters, and reconnaissance aircraft, space and load resources are very valuable. Therefore, the compact design of 1064nm Laser Target Designator can be easily integrated into the aircraft's optoelectronic pod and other equipment.
Marine applications: On marine platforms such as ships, compact observation systems need to adapt to complex environments. The 1064nm Laser Target Designator has a compact structure and is easy to install in multiple locations on the ship. In maritime patrol and surveillance missions, it can quickly lock onto distant targets such as ships, islands, and floating objects. When encountering maritime conflicts, it can be used as a target indication tool to guide ship-borne artillery, missiles and other weapons for precise strikes. Its stable performance and lightweight size ensure that it can work in harsh marine environments.
TECHNICAL SPECIFICATIONS
| Parameter Indicators | |
| Module | LDR100K1 |
| Pump Source | Laser LD (Laser Diode) Pumping |
| Cooling Method | Passive cooling, no temperature control |
| Working Mode | Laser Ranging, Laser target indication |
| Operating Wavelength | 1064nm±1nm |
| Pulse Energy | ≥100mJ |
| Laser Energy Stability | Within a single irradiation cycle, the pulse energy fluctuation does not exceed 10% of the average energy. |
| Pulse Width | ≥15ns±5ns |
| Beam Divergence Angle | ≤0.15mrad |
| Stability of The Laser Optical Axis | ≤0.05mrad |
| Ranging performance | |
| Ranging frequency | 1~25Hz |
| Continuous Laser Ranging Time | 5min(1Hz)/1min (5Hz)/20S（20Hz） |
| Minimum measuring distance | ≤300m |
| Maximum measuring distance |
≥20 km (Under the conditions of a target with a size of 2.3m×2.3m, a diffuse reflectance coefficient of not less than 0.2, a visibility of not less than 23 km, and a relative humidity of not more than 70%) |
| Ranging accuracy | ±1m |
| Rate of successful measurement | 98% |

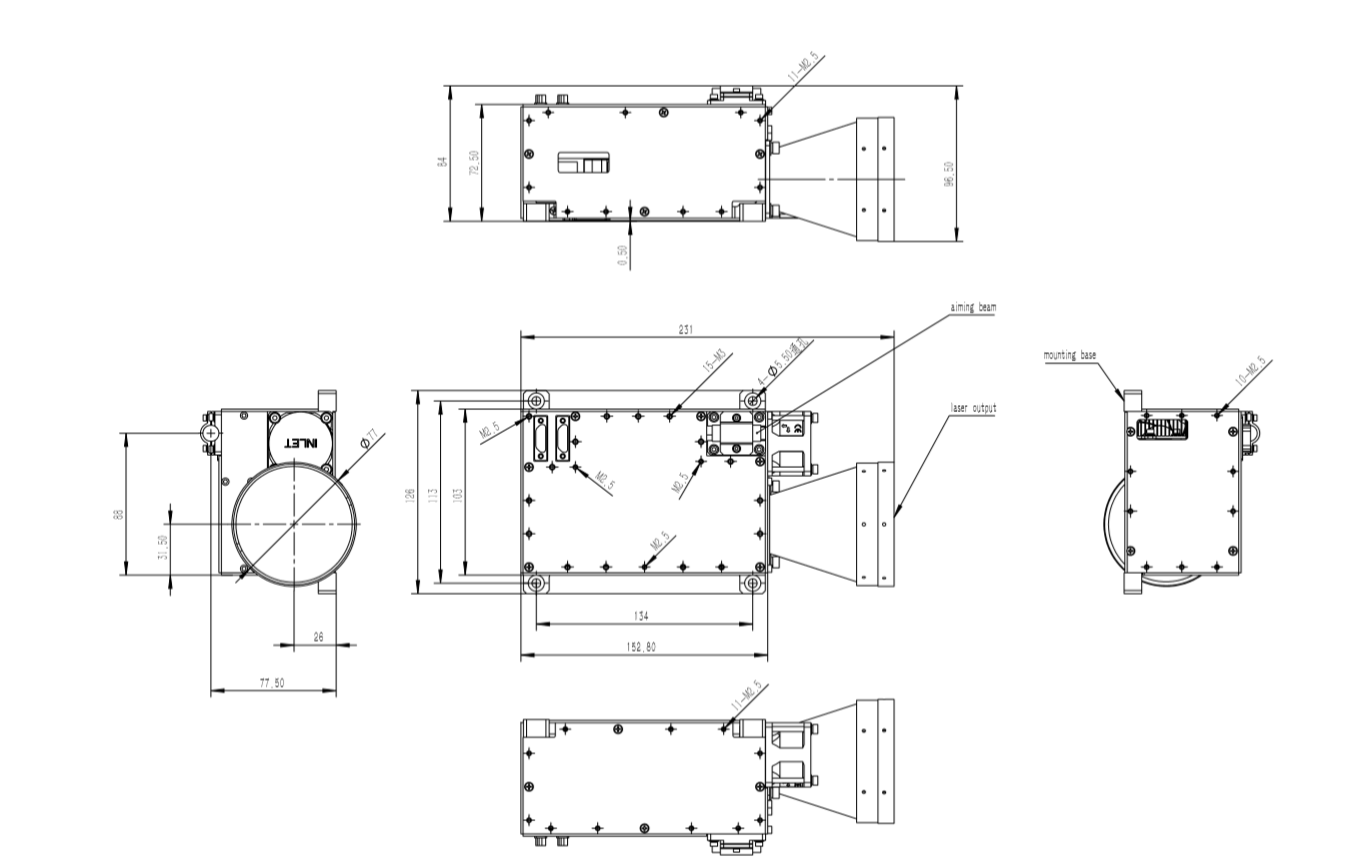

MECHANICAL DIMENSION(mm)
