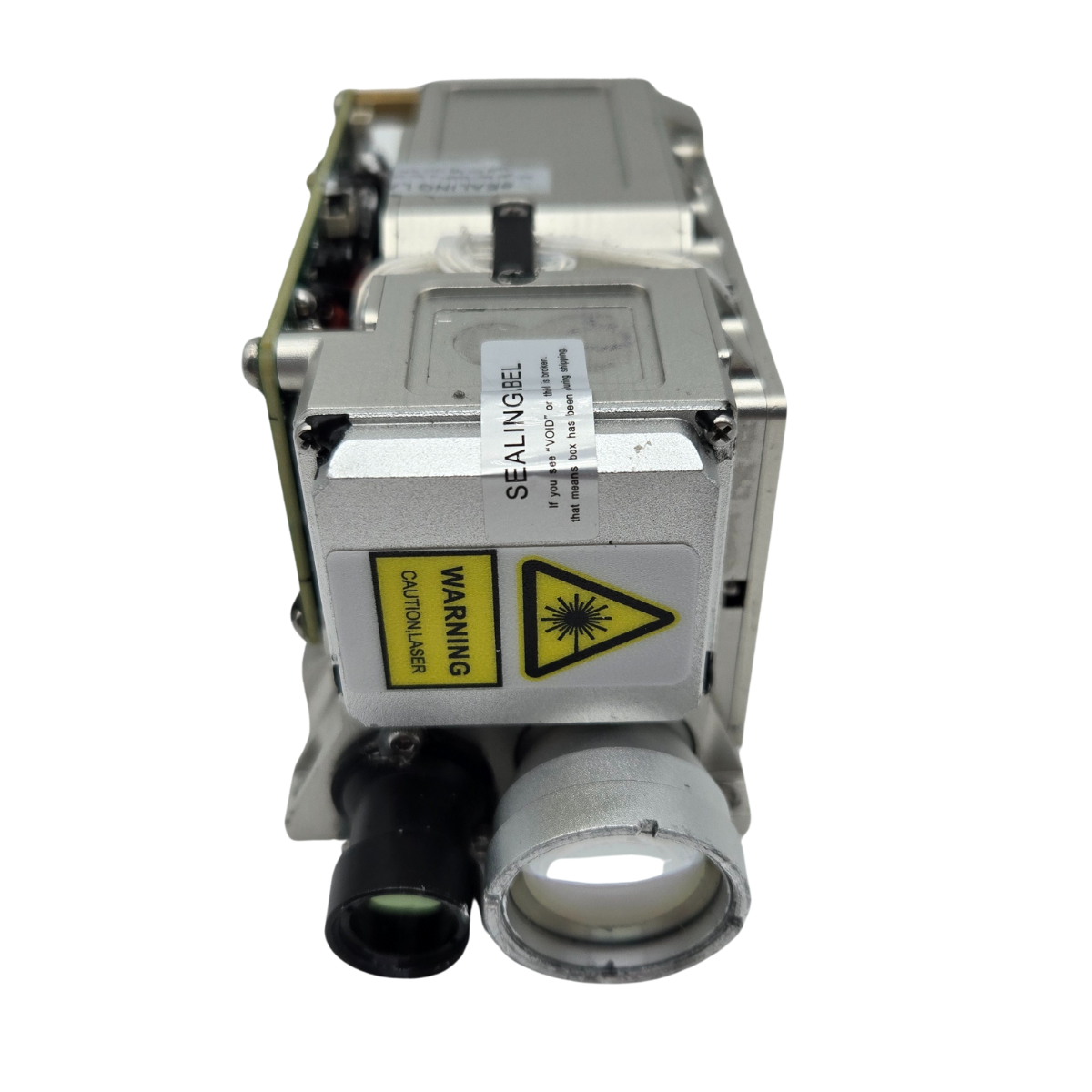

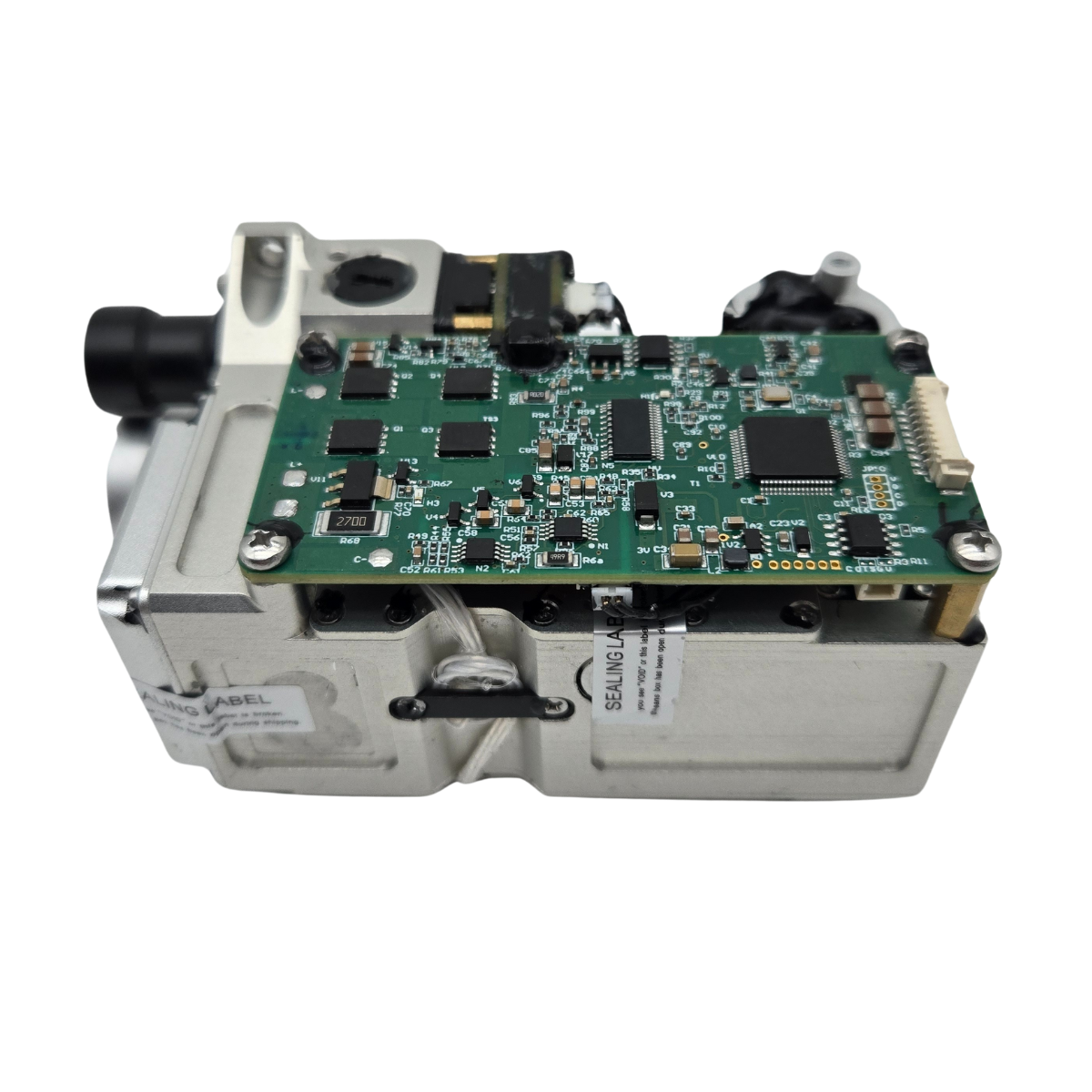

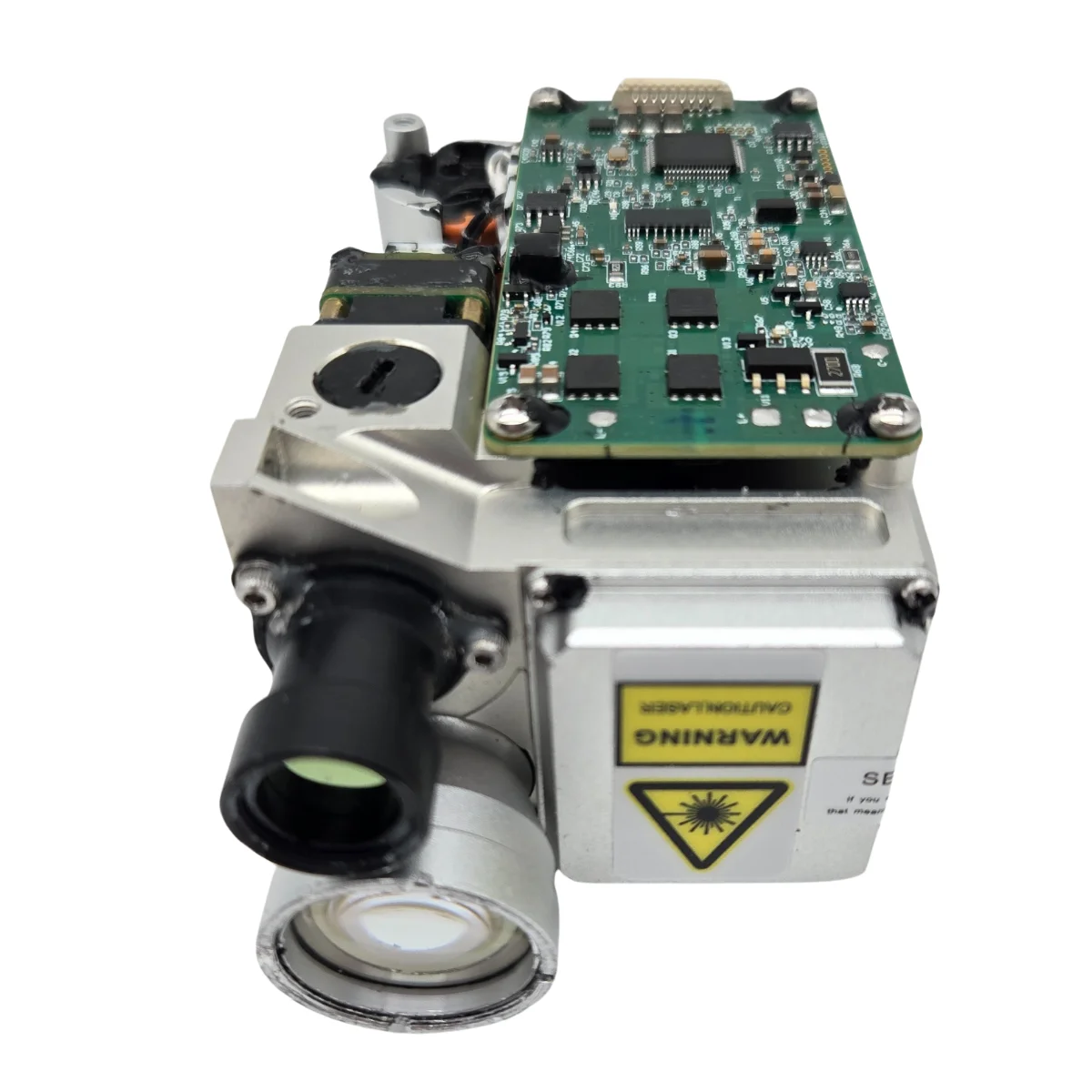

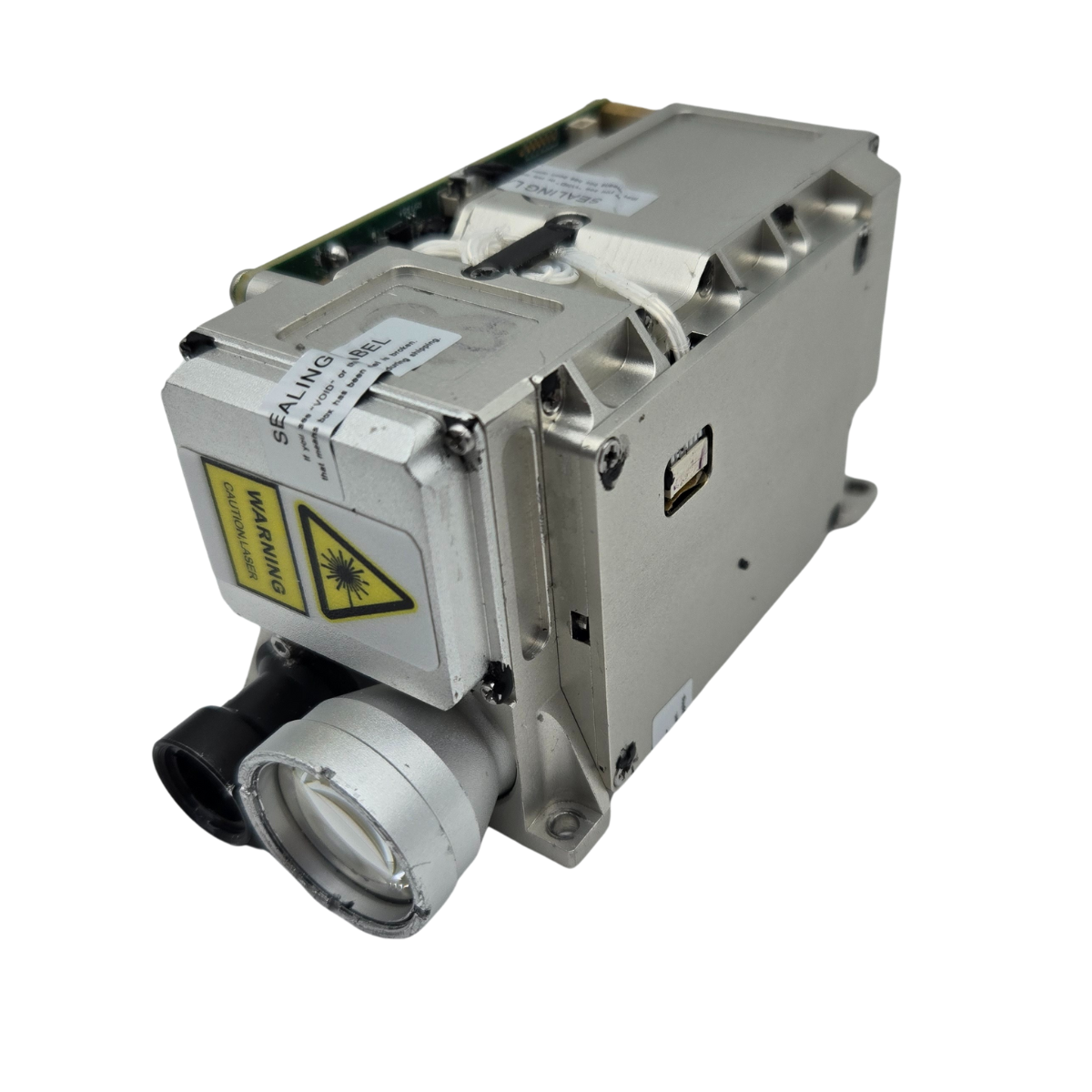

1064nm Laser Ranging Target Designator 6km
We provide a 1-year warranty on all devices, complemented by lifetime technical after-sales assistance to ensure long-term operational efficiency for your business.
DESCRIPTION
The 1064nm Laser Ranging Target Designator 6km ranging capability for NATO targets is ≥6km. The ranging frequency is 1~20Hz. The laser illumination distance is ≥4km. The pulse width is ≥15ns ± 5ns. The beam divergence angle is ≤0.4 mrad. The weight is ≤460g.
TECHNICAL SPECIFICATIONS
| Parameter Indicators | |
| Module | LDR40K1 |
| Pump Source | Laser LD (Laser Diode) Pumping |
| Working Mode | Ranging, target indication |
| Operating Wavelength | 1064nm±3nm |
| Pulse Energy | ≥40 mJ |
| Laser Energy Stability | Within a single irradiation cycle, the pulse energy fluctuation does not exceed 10% of the average energy. |
| Pulse Width | ≥15 ns±5ns |
| Beam Divergence Angle | ≤0.4mrad |
| Stability of The Laser Optical Axis | ≤0.05mrad |
| Ranging performance | |
| Ranging frequency | 1~20Hz |
| Continuous Laser Ranging Time | 5min(1Hz)/1min (5Hz)/20S（20Hz） |
| Minimum measuring distance | ≤ 100m |
| Maximum measuring distance |
≥10 km(Visibility: 23.5 km, target reflectivity: 0.2, target size: 2.3 m × 2.3 m) |
| Ranging accuracy | ±1m |
| Rate of successful measurement | 98% |

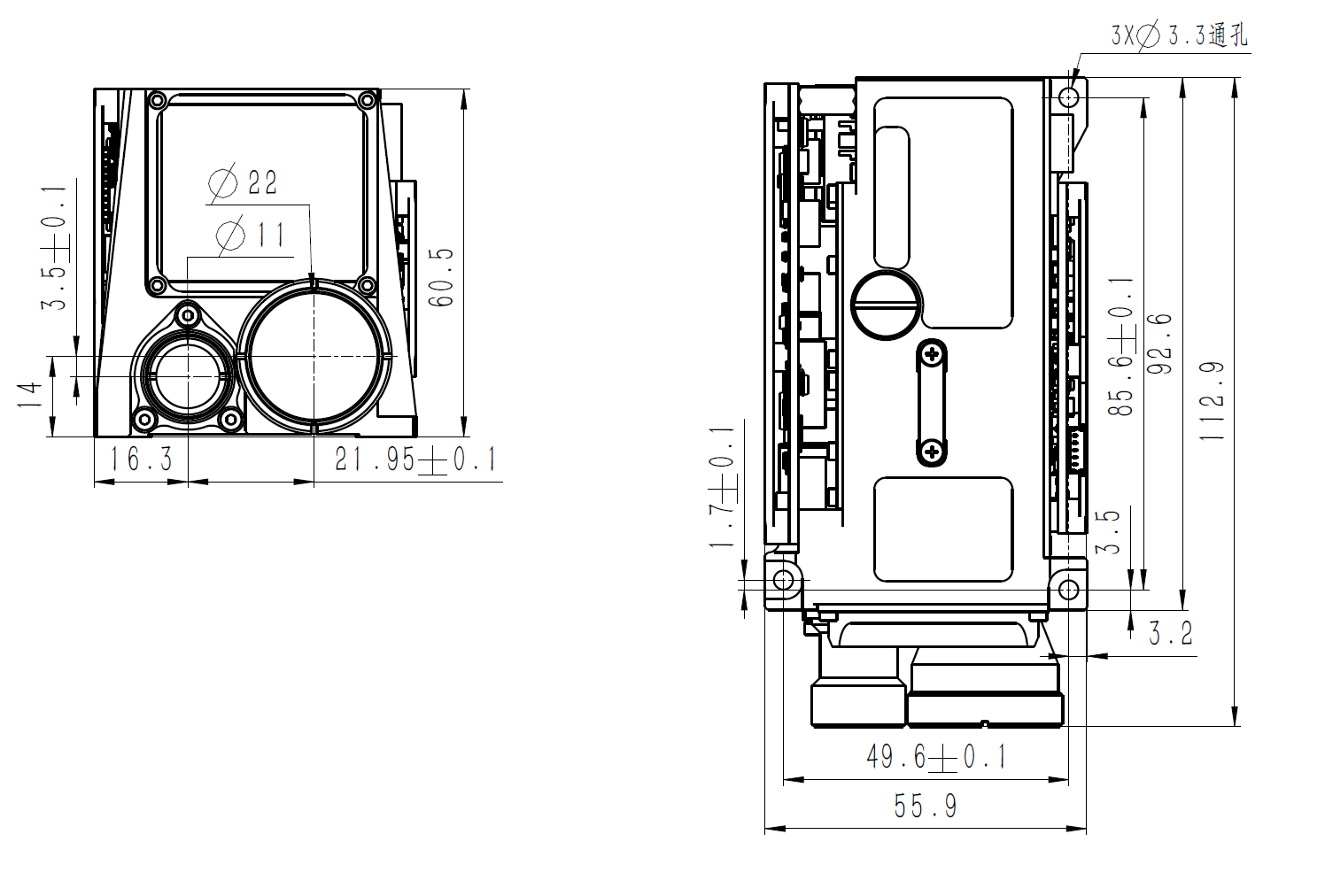

MECHANICAL DIMENSION(mm)
