1570nm OPO Laser Rangefinder Module 30km LRF25A02ES
DESCRIPTION

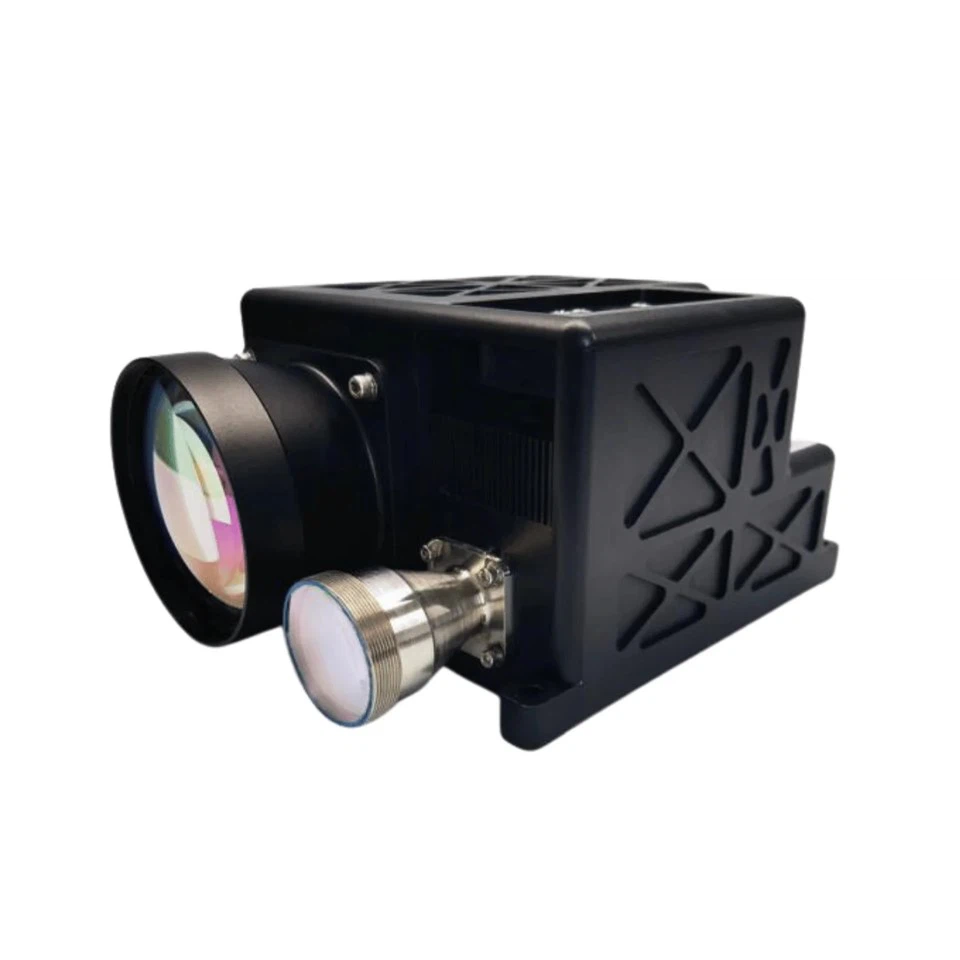

The LRF25A02ES is a 1570nm eye-safe laser rangefinder built around diode-pumped OPO technology. This compact optoelectronic unit delivers seamless integration of optical, mechanical and electronic subsystems.
Under standard visibility circumstances, it achieves an effective ranging distance of no less than 5 km for targets with a surface area of 0.05 m² or larger.
TECHNICAL SPECIFICATIONS
|
Eye safety/level |
Class1/1M |
|
Laser Wavelength |
1570nm |
|
Ranging Capability |
Under standard visibility conditions, for targets with a size of ≥0.05m2 (such as DJI Phantom 4 drone), the operating range is ≥5km; Under standard visibility conditions, for large targets with a reflectivity of ≥20%, the operating range is ≥30km. ≥15km (under standard visibility, for a target of 2.3m*2.3m with a reflectivity of ≥20%). |
|
Minimum Ranging Distance |
50m |
|
Ranging Accuracy |
≤1m(RMS) |
|
Ranging Frequency |
1~25Hz |
|
Accuracy rate |
≥98% |
|
Multi-target detection |
≥1. If more targets are needed, the communication protocol should be customized. |
|
Trigger method |
It has two triggering modes: internal triggering and external triggering. When externally triggered, the time synchronization error between the laser and the external trigger pulse is no more than 10us. |
|
Divergence Angle |
≤1mrad |
|
Dimensions (Length * Width * Height) |
≤235.5mm×170mm×116mm |
|
Weight |
≤4300g |
|
Power Supply |
28VDC±10% |
|
Power Consumption |
Average power consumption ≤50W, Peak power consumption ≤150W |
|
Communication Interface |
RS422 |
|
Operating Temperature |
-40℃～+60℃ |
|
Storage Temperature |
-55℃～+70℃ |
|
Vibration and Shock |
Meeting the relevant requirements of GJB150.16A.2009 |

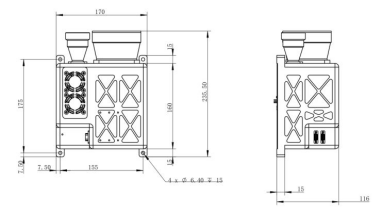

OUTLINE DIMENSION(mm)
ELECTRICAL INTERFACE
The upper computer and this rangefinder are connected through an aviation connector, which is an electrical interface.
1. Power supply interface: DC26V to DC30V (28VDC recommended); average power consumption ≤30W, peak power ≤250W;
2. Communication interface: RS422.
Table 1 Electrical interface
| Electrical Interface Diagram |
J30J-15ZK (Aerospace Electric) |
|
|
Pin |
interface definition |
note |
|
1~4 |
DC Power Supply |
+28V DC |
|
5~8 |
DC Power Supply Ground |
+28V Ground |
|
9 |
Serial Port T+ (Transmission + from Laser Rangefinder to Platform) |
RS422 |
|
10 |
Serial Port R- (Reception - from Platform to Laser Rangefinder) |
|
|
11 |
Serial Port T- (Transmission - from Laser Rangefinder to Platform) |
|
|
12 |
Serial Port R+ (Reception + from Platform to Laser Rangefinder) |
|
|
13 |
RS422 Communication GND (Optional, can be left unconnected) |
|
|
14 |
SYN+  |
RS422 Differential External Time Synchronization |
|
15 |
SYN-  |
|
|
upper computer electrical interface |
J30J-15TJ with approx. 200 mm cable, supplied by the manufacturer |
|
