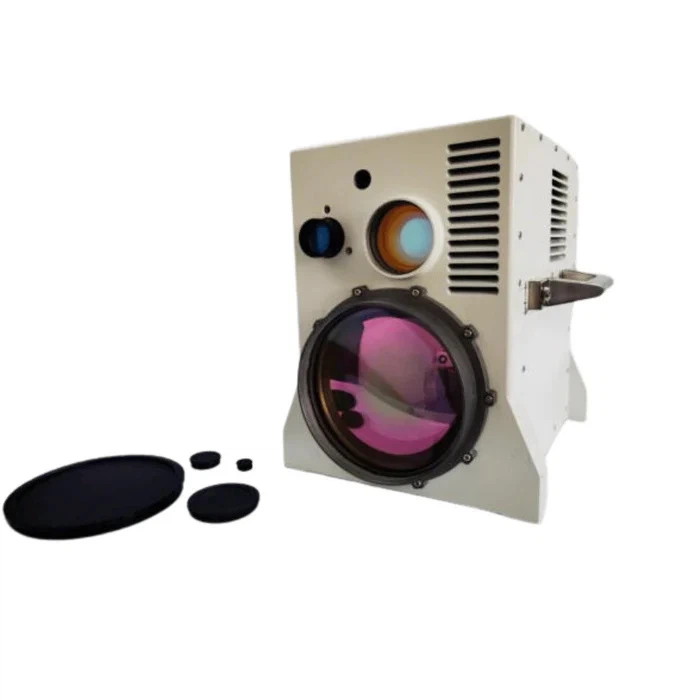

1570nm OPO Laser Rangefinder Module 50km LRF50D120ES
DESCRIPTION
Model LRF50D120ES is a 1570nm eye-safe laser rangefinder built around diode-pumped Optical Parametric Oscillator (OPO) technology.
This sophisticated optoelectronic device achieves tight integration of optical, mechanical and electronic assemblies.
It delivers superior ranging resolution. Under favourable standard visibility conditions, the effective detection range reaches no less than 15 km against a 1 m² aerial target with over 20% reflectivity. For large-size targets carrying identical reflectivity, the measurable distance extends to a minimum of 50 km.
TECHNICAL SPECIFICATIONS
|
Eye safety/level |
Class1/1M |
|
Laser Wavelength |
1570nm |
|
Ranging Capability |
Under better-than-standard visibility conditions, for a 1m2 flying target (reflectivity >20%), the operating range R is ≥15km; for a large target (reflectivity >20%), the operating range R is ≥50km. |
|
Minimum Ranging Distance |
100m |
|
Ranging Accuracy |
≤1m(RMS) |
|
Ranging Frequency |
1～25Hz;5Hz/10Hz/20Hz/25Hz/50Hz. |
|
Accuracy |
≥98% |
|
Multi-target detection |
≥1. If more targets are needed, the communication protocol should be customized. |
|
Trigger method |
It has two triggering modes: internal triggering and external triggering. When externally triggered, the time synchronization error between the laser and the external trigger pulse is no more than 10us. |
|
Divergence Angle |
≤1.2mrad |
|
Dimensions (Length * Width * Height) |
≤378mm×220mm×275mm |
|
Weight |
≤14kg |
|
Power Supply |
28VDC±10% |
|
Power Consumption |
Average power consumption ≤150W, Peak power consumption ≤300W |
|
Communication Interface |
RS422 |
|
Operating Temperature |
-40℃～+60℃ |
|
Storage Temperature |
-55℃～+70℃ |
|
Vibration and Shock |
Meeting the relevant requirements of GJB150.16A.2009 |

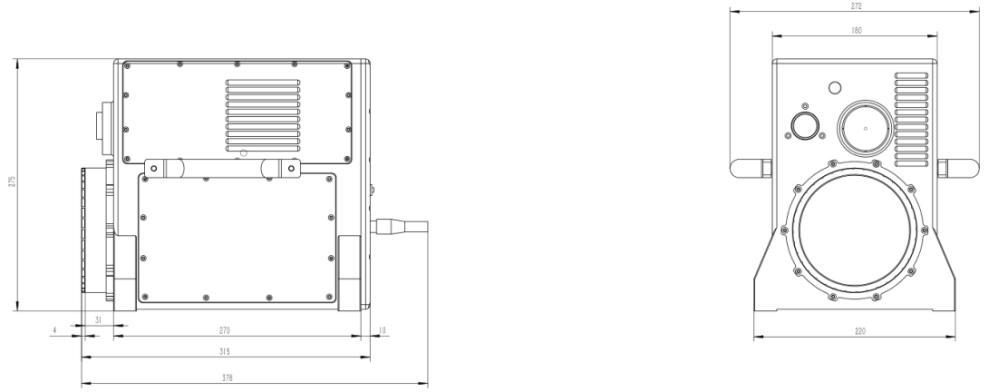

OUTLINE DIMENSION(mm)
Mounting interface accepts customization
ELECTRICAL INTERFACE
The upper computer and this rangefinder are connected through an aviation connector, which is an electrical interface.
1. Power supply interface: DC26V to DC30V (28VDC recommended); average power consumption ≤30W, peak power ≤250W;
2. Communication interface: RS422.
Table 1 Electrical interface
| Electrical Interface Diagram |
 J30J-15ZK (Aerospace Electric) |
|
|
Pin |
interface definition |
note |
|
1~4 |
DC Power Supply |
+28V DC |
|
5~8 |
DC Power Supply Ground |
+28V Ground |
|
9 |
Serial Port T+ (Transmission + from Laser Rangefinder to Platform) |
RS422 |
|
10 |
Serial Port R- (Reception - from Platform to Laser Rangefinder) |
|
|
11 |
Serial Port T- (Transmission - from Laser Rangefinder to Platform) |
|
|
12 |
Serial Port R+ (Reception + from Platform to Laser Rangefinder) |
|
|
13 |
RS422 Communication GND (Optional, can be left unconnected) |
|
|
14 |
SYN+  |
RS422 Differential External Time Synchronization |
|
15 |
SYN-  |
|
|
upper computer electrical interface |
J30J-15TJ with approx. 200 mm cable, supplied by the manufacturer |
|
