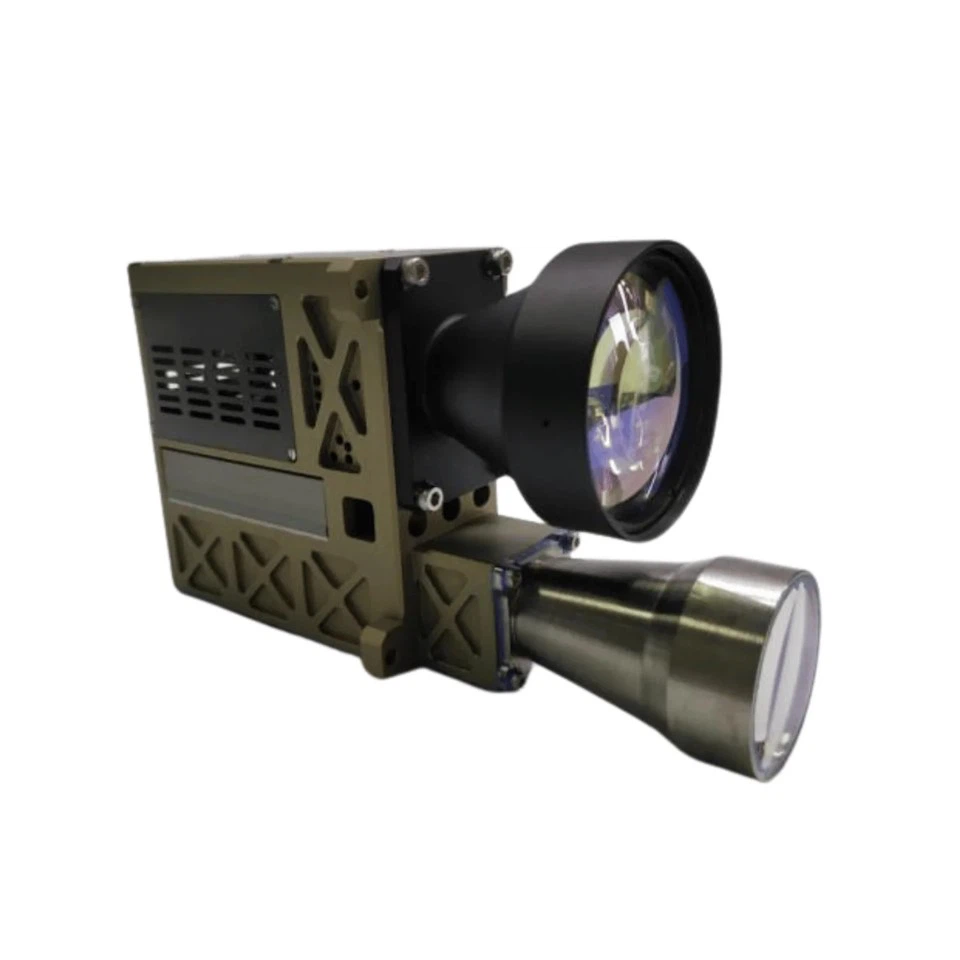

1570nm Tactical Laser Rangefinder Distance Meter Sensor 20km LRF20C01ES
DESCRIPTION
The LRF20C01ES is a 1570nm tactical laser rangefinder sensor that merges optical, mechanical and electronic subsystems into one integrated unit.
Under standard visibility, it delivers effective ranging performance: minimum 20 km detection range for large targets with reflectivity ≥20%, and at least 10 km for a 2.3m × 2.3m target with identical reflectivity.
Boasting compact dimensions, lightweight build, outstanding reliability and extended service life, the module supports high-accuracy distance detection for remote targets.
It can be flexibly embedded into portable observation equipment, vehicle-borne and airborne optoelectronic platforms.
TECHNICAL SPECIFICATIONS
| Eye safety/level | Class1/1M |
| Laser Wavelength | 1570nm |
| Ranging Capability |
≥20km (under standard visibility, large target, reflectivity ≥20%) ≥10km (under standard visibility, 2.3m*2.3m target, reflectivity ≥20%) |
| Minimum Ranging Distance | 50m |
| Ranging Accuracy | ≤1m(RMS) |
| Ranging Frequency | 1~20Hz |
| Accuracy | ≥98% |
| Multi-target detection | ≥1. lf more targets are needed, the communication protocol should be customized. |
| Divergence Angle | ≤0.7mrad |
| Dimensions (Length * Width * Height) | ≤219mmx69mmx121mm |
| Weight | ≤1400g |
| Power Supply | 28VDC+10% |
| Power Consumption | Average power consumption ≤30W |
| Communication Interface | RS422 |
| Operating Temperature | -40℃~+60℃ |
| Storage Temperature | -55℃℃~+70℃ |
| Vibration and Shock | Meeting the relevant requirements of GJB150.16A.2009 |

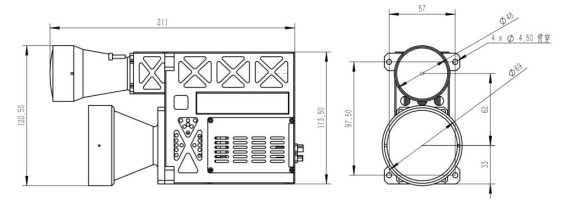

OUTLINE DIMENSION(mm)
ELECTRICAL INTERFACE
The upper computer and this rangefinder are connected through an aviation connector, which is an electrical interface.
1. Power supply interface: DC26V to DC30V (28VDC recommended); average power consumption ≤30W, peak power ≤250W;
2. Communication interface: RS422.
Table 1 Electrical interface
|
Electrical Interface Diagram |
 |
|
|
Pin |
interface definition |
note |
|
1~4 |
DC Power Supply |
+28V DC |
|
5~8 |
DC Power Supply Ground |
+28V Ground |
|
9 |
Serial Port T+ (Transmission + from Laser Rangefinder to Platform) |
RS422 |
|
10 |
Serial Port R- (Reception - from Platform to Laser Rangefinder) |
|
|
11 |
Serial Port T- (Transmission - from Laser Rangefinder to Platform) |
|
|
12 |
Serial Port R+ (Reception + from Platform to Laser Rangefinder) |
|
|
13 |
RS422 Communication GND (Optional, can be left unconnected) |
|
|
14 |
SYN+  |
RS422 Differential External Time Synchronization |
|
15 |
SYN-  |
|
|
upper computer electrical interface |
J30J-15TJ with approx. 200 mm cable, supplied by the manufacturer |
|
