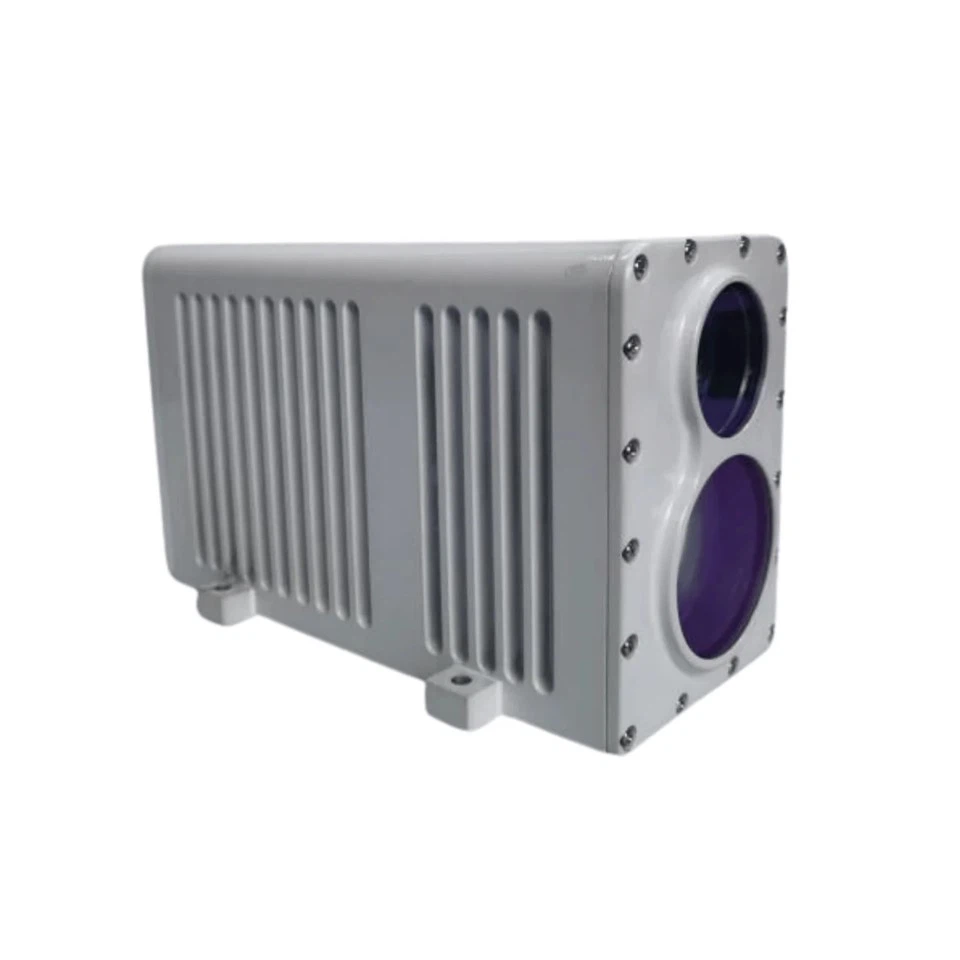

1570nm RS422 Port Laser Rangefinder Module 20km LRF20E01ES
DESCRIPTION
The LRF20E01ES is a 1570nm eye-safe laser rangefinder powered by diode-pumped OPO technology. This advanced optoelectronic unit achieves refined integration of optical, mechanical and electronic assemblies.
Under standard visibility conditions, it attains an effective ranging range of no less than 20 km for large targets with reflectivity above 20%. When tracking a 2.3m × 2.3m target featuring identical reflectivity, the measurable distance reaches a minimum of 10 km.
It maintains stable ranging precision and is suitable for integration into vehicle-mounted, shipborne and portable optoelectronic observation systems.
TECHNICAL SPECIFICATIONS
|
Eye safety/level |
Class1/1M |
|
Laser Wavelength |
1570nm |
|
Ranging Capability |
≥20km (under standard visibility, large target, reflectivity ≥20%) ≥10km (under standard visibility, 2.3m*2.3m target, reflectivity ≥20%) |
|
Minimum Ranging Distance |
50m |
|
Ranging Accuracy |
≤1m(RMS) |
|
Ranging Frequency |
1~20Hz |
|
Accuracy rate |
≥98% |
|
Multi-target detection |
≥1. If more targets are needed, the communication protocol should be customized. |
|
Divergence Angle |
≤1mrad |
|
Dimensions (Length * Width * Height) |
≤220mm×116mm×131mm |
|
Weight |
≤3200g |
|
Power Supply |
28VDC±10% |
|
Power Consumption |
Average power consumption ≤30W Peak power consumption ≤100W |
|
Communication Interface |
RS422 |
|
Operating Temperature |
-40℃～+60℃ |
|
Storage Temperature |
-55℃～+70℃ |
|
Vibration and Shock |
Meeting the relevant requirements of GJB150.16A.2009 |

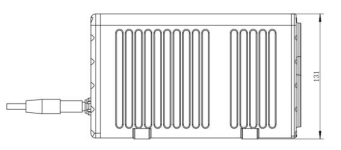

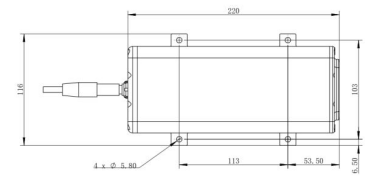

OUTLINE DIMENSION(mm)
ELECTRICAL INTERFACE
The upper computer and this rangefinder are connected through an aviation connector, which is an electrical interface.
1. Power supply interface: DC26V to DC30V (28VDC recommended); average power consumption ≤30W, peak power ≤250W;
2. Communication interface: RS422.
Table 1 Electrical interface
|
Electrical Interface Diagram |
 |
|
|
Pin |
interface definition |
note |
|
1~4 |
DC Power Supply |
+28V DC |
|
5~8 |
DC Power Supply Ground |
+28V Ground |
|
9 |
Serial Port T+ (Transmission + from Laser Rangefinder to Platform) |
RS422 |
|
10 |
Serial Port R- (Reception - from Platform to Laser Rangefinder) |
|
|
11 |
Serial Port T- (Transmission - from Laser Rangefinder to Platform) |
|
|
12 |
Serial Port R+ (Reception + from Platform to Laser Rangefinder) |
|
|
13 |
RS422 Communication GND (Optional, can be left unconnected) |
|
|
14 |
SYN+  |
RS422 Differential External Time Synchronization |
|
15 |
SYN-  |
|
|
upper computer electrical interface |
J30J-15TJ with approx. 200 mm cable, supplied by the manufacturer |
|
