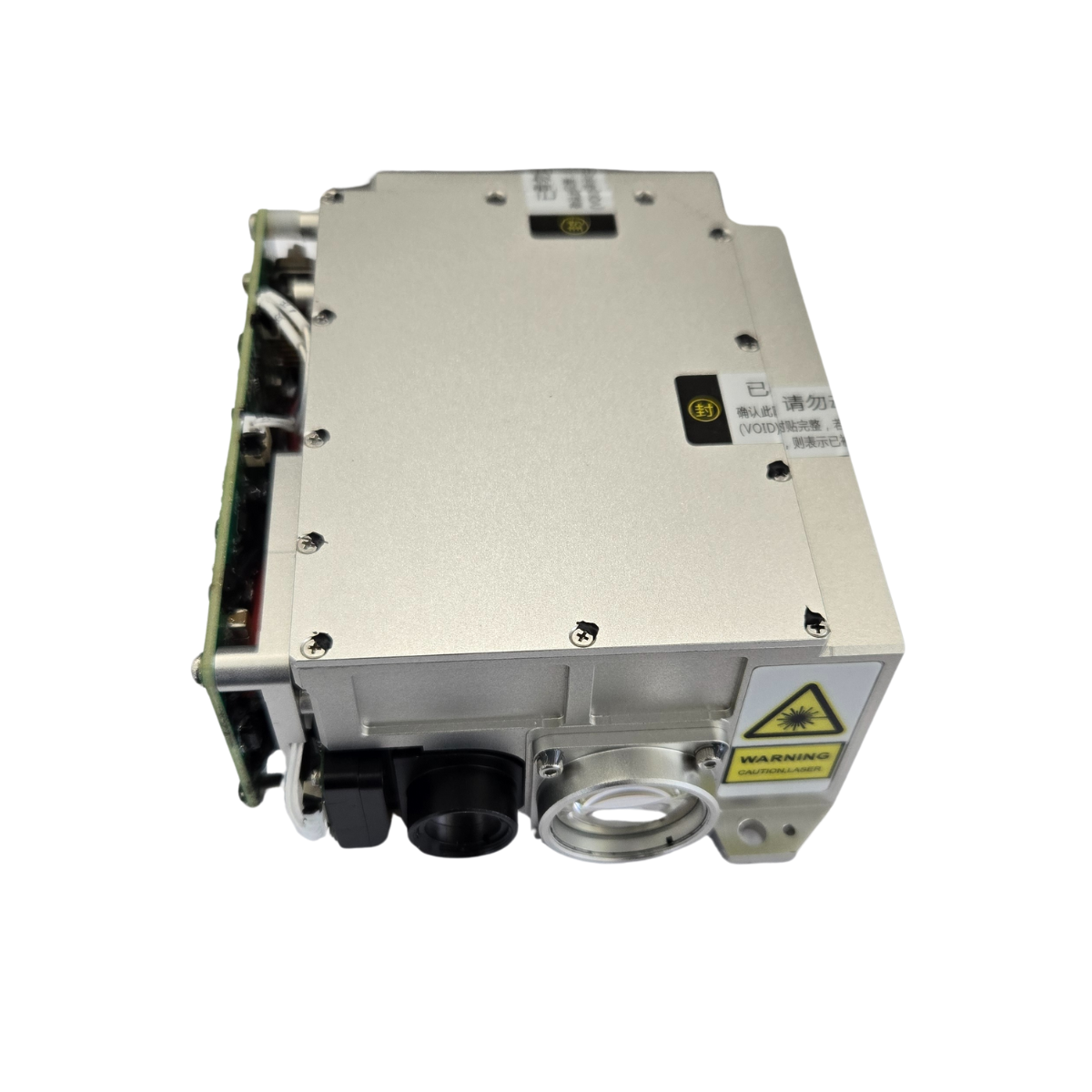

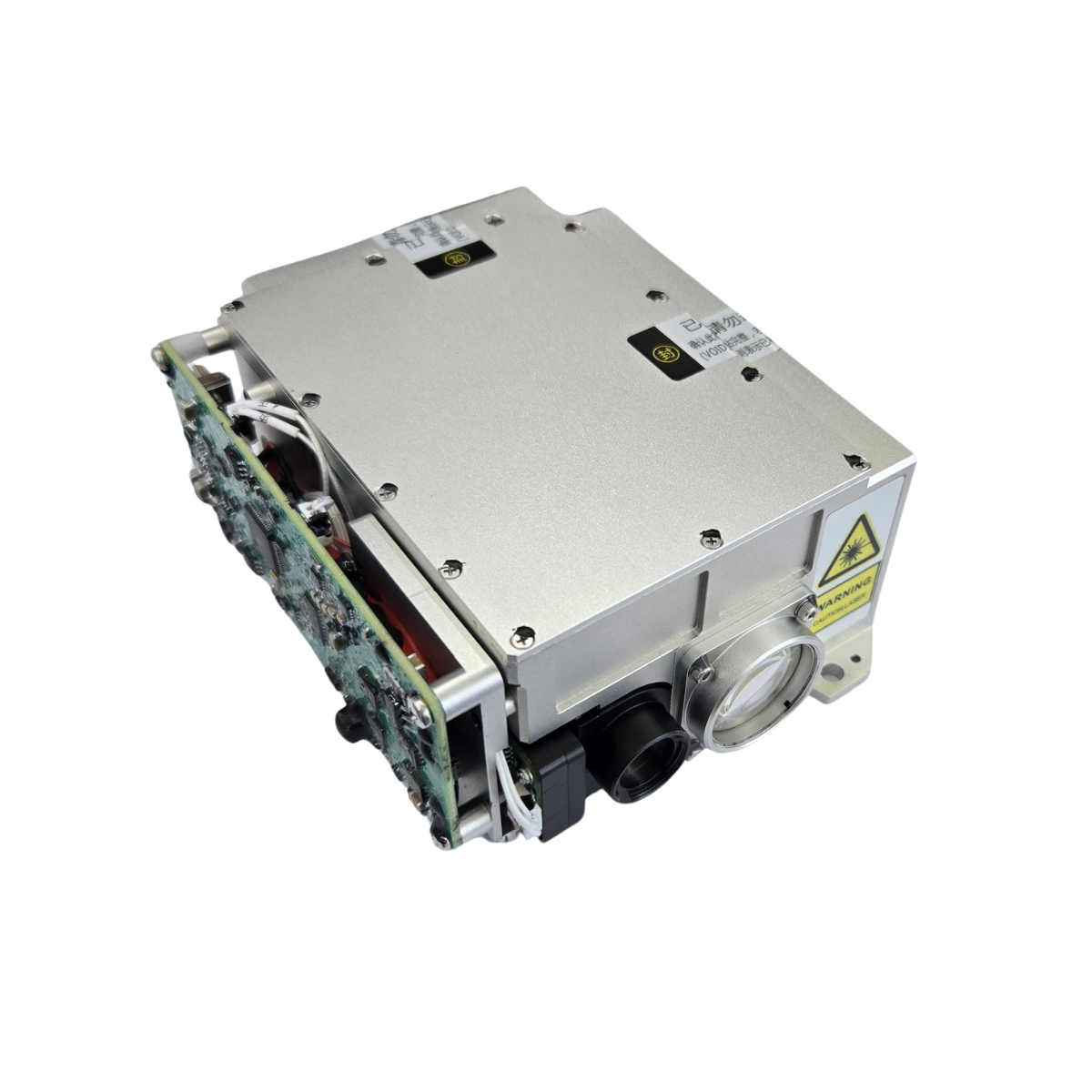

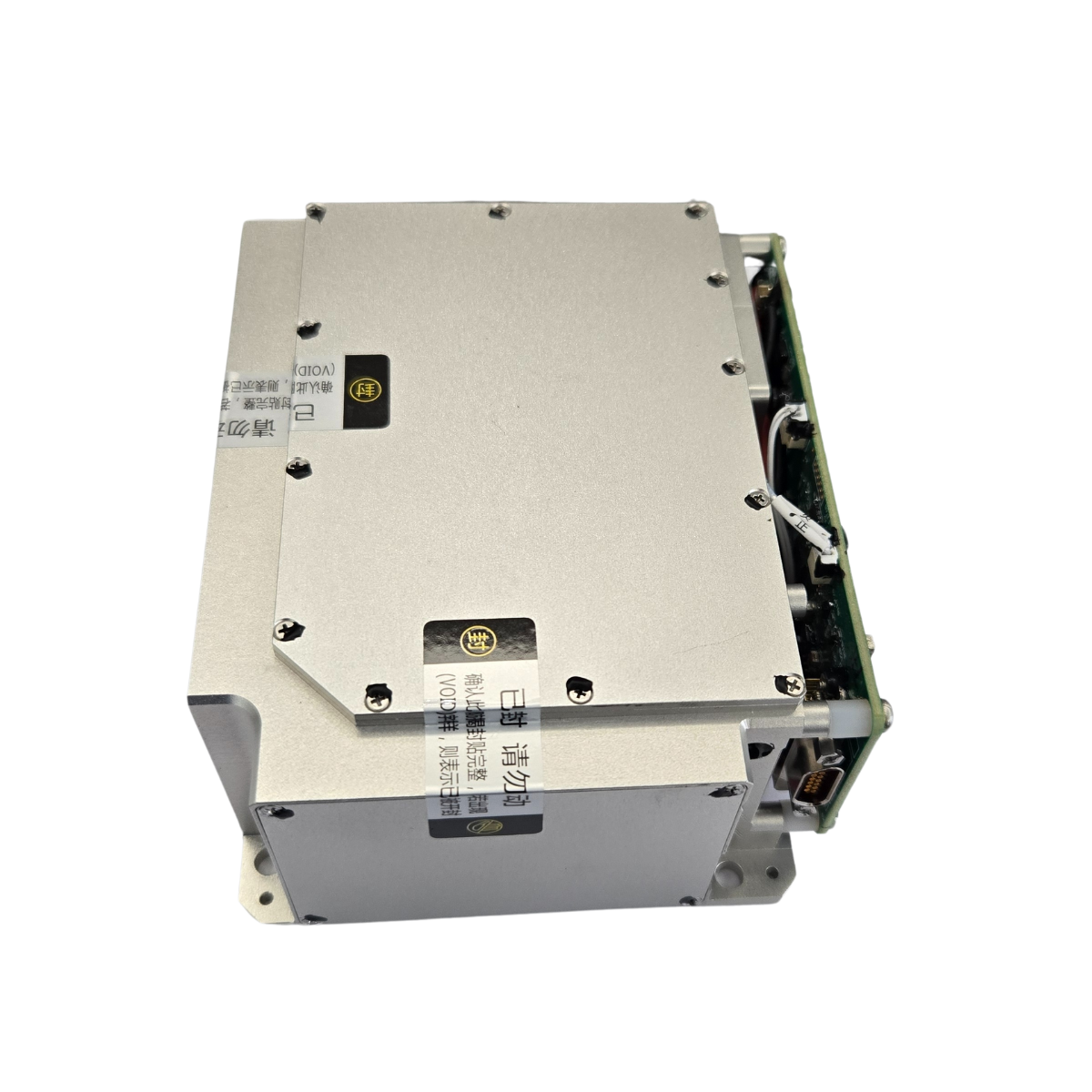

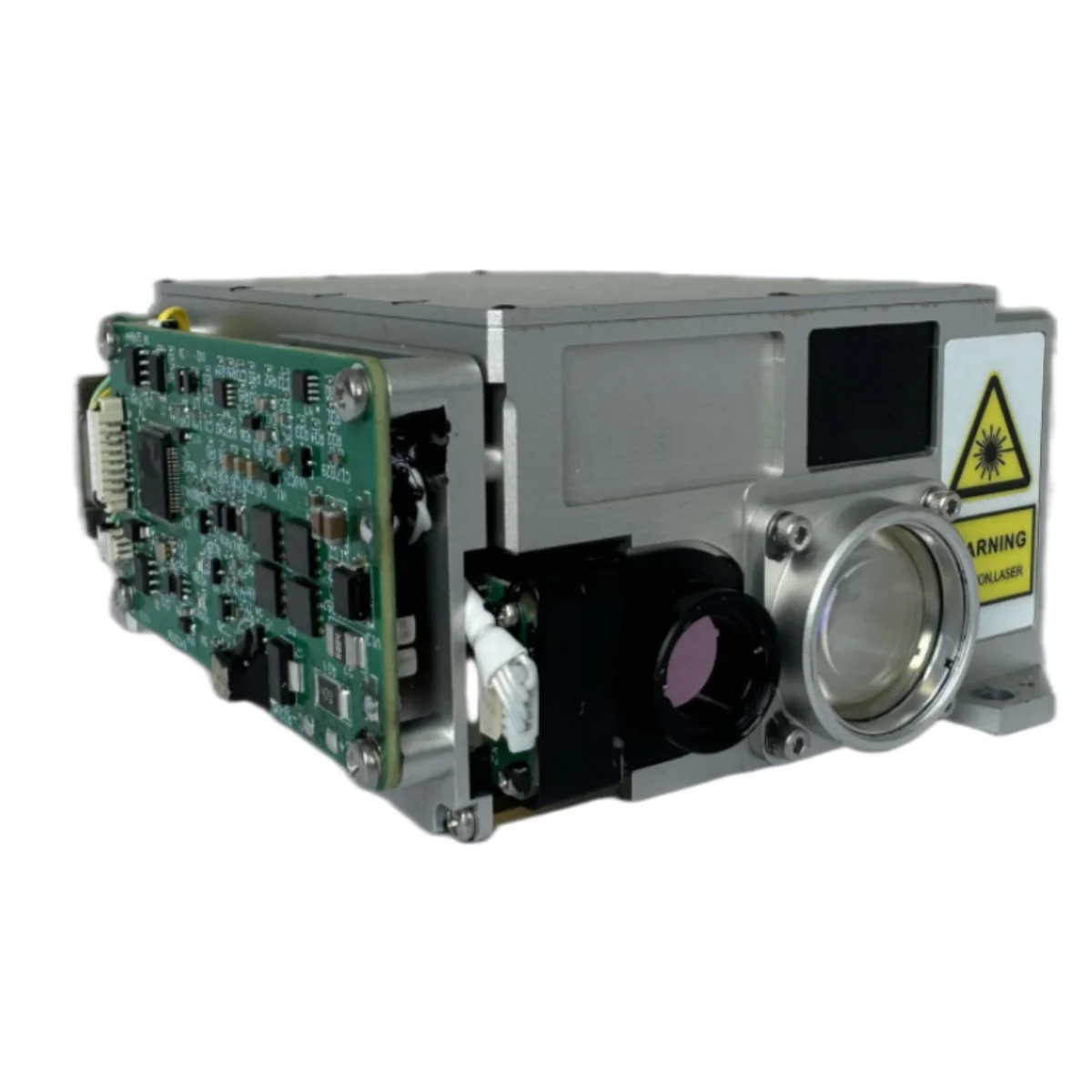

1064nm Laser Ranging Target Designator 16km
We provide a 1-year warranty on all devices, complemented by lifetime technical after-sales assistance to ensure long-term operational efficiency for your business.
DESCRIPTION
The 1064nm Laser Ranging Target Designator 16km is a carefully crafted, lightweight, and compact Laser Target Designator and Range Finder, delivering remarkable stability and performance in real-world use. This Laser Ranging Target Designator 16km is perfectly suited for compact observation systems across airborne, maritime, and terrestrial photoelectric operations.
TECHNICAL SPECIFICATIONS
| Parameter Indicators | |
| Module | LDR80K1 |
| Pump Source | Laser LD (Laser Diode) Pumping |
| Working Mode | Ranging, target indication |
| Operating Wavelength | 1064nm±3nm |
| Pulse Energy | ≥80mJ |
| Laser Energy Stability | Within a single irradiation cycle, the pulse energy fluctuation does not exceed 10% of the average energy. |
| Pulse Width | ≥15ns±5ns |
| Beam Divergence Angle | ≤0.3mrad |
| Stability of The Laser Optical Axis | ≤0.05mrad |
| Ranging performance | |
| Ranging frequency | 1~20Hz |
| Continuous Laser Ranging Time | 5min(1Hz)/1min (5Hz)/20S（20Hz） |
| Minimum measuring distance | ≤300m |
| Maximum measuring distance |
≥16km (Under the conditions of a target with a size of 2.3m×2.3m, a diffuse reflectance coefficient of not less than 0.2, a visibility of not less than 23 km, and a relative humidity of not more than 70%) |
| Ranging accuracy | ±1m |
| Rate of successful measurement | 98% |

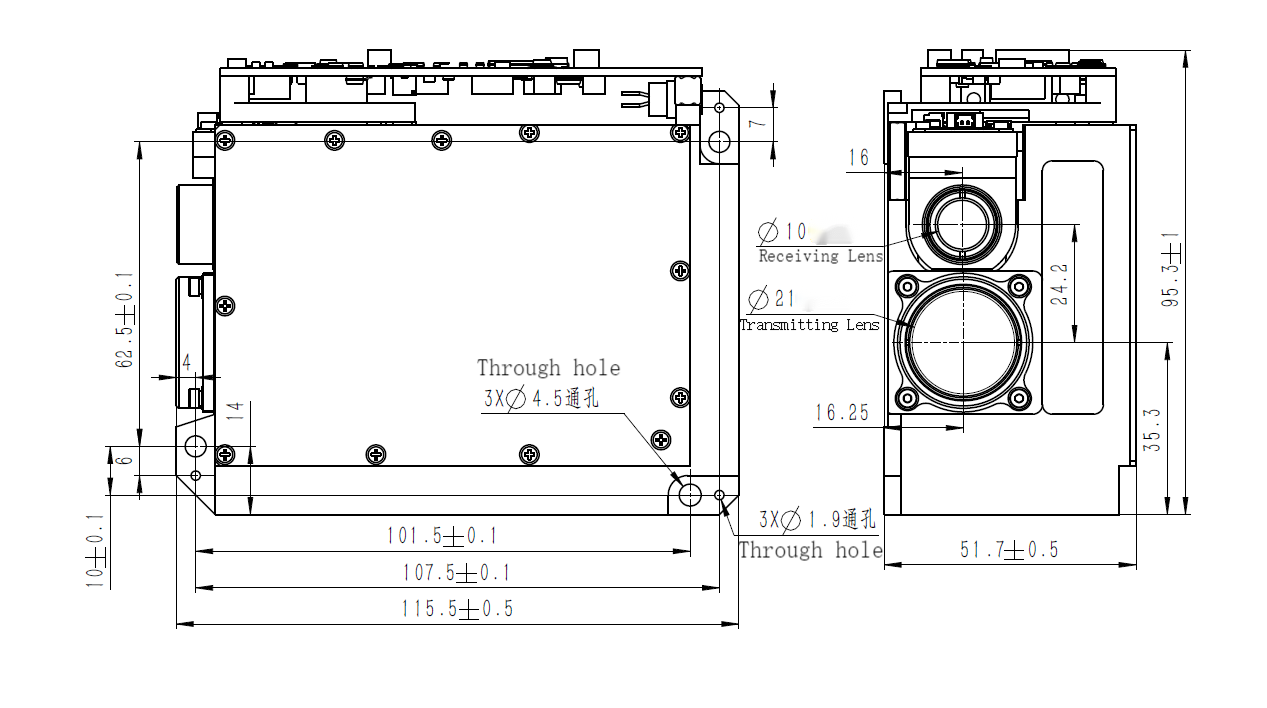

MECHANICAL DIMENSION(mm)
