DESCRIPTION

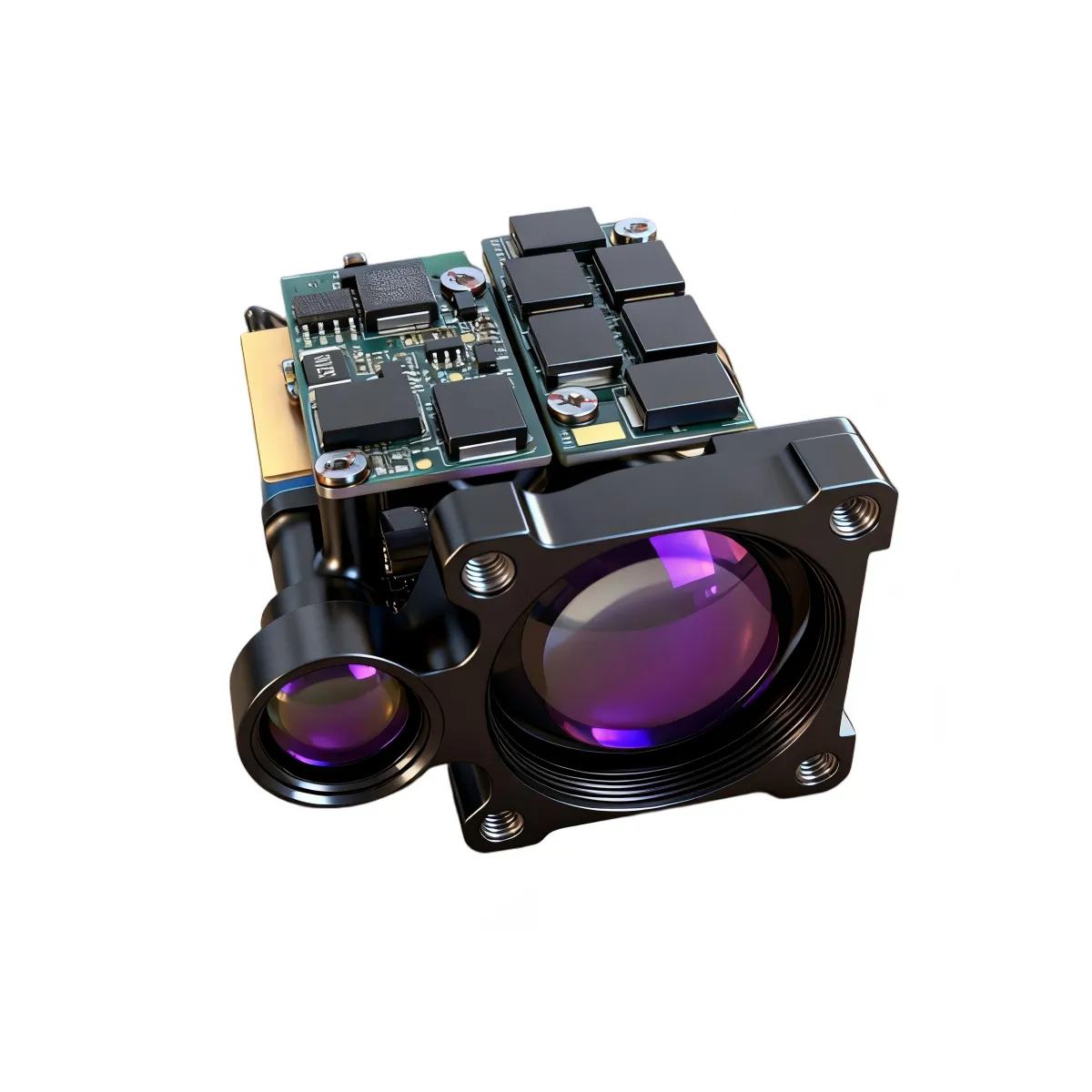

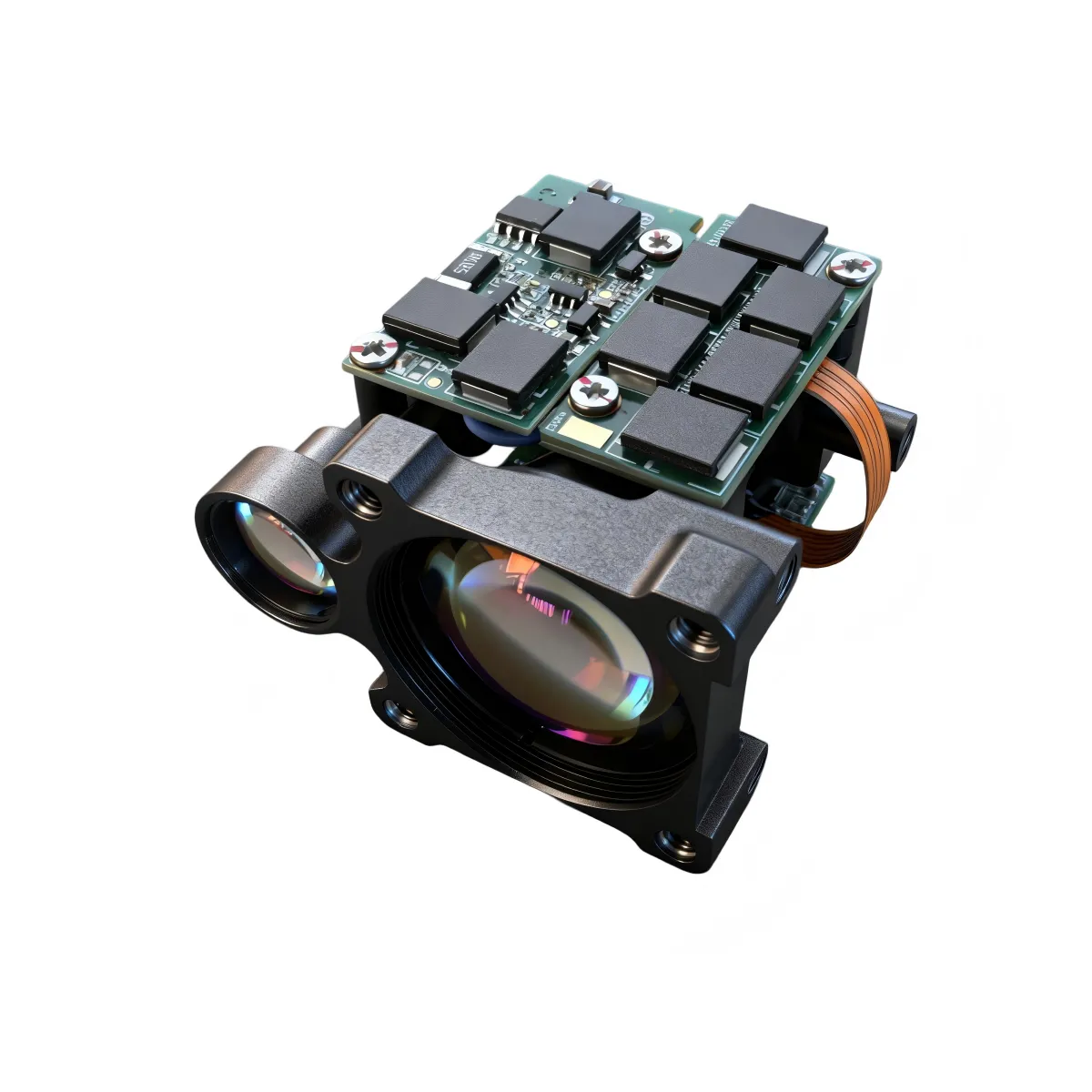

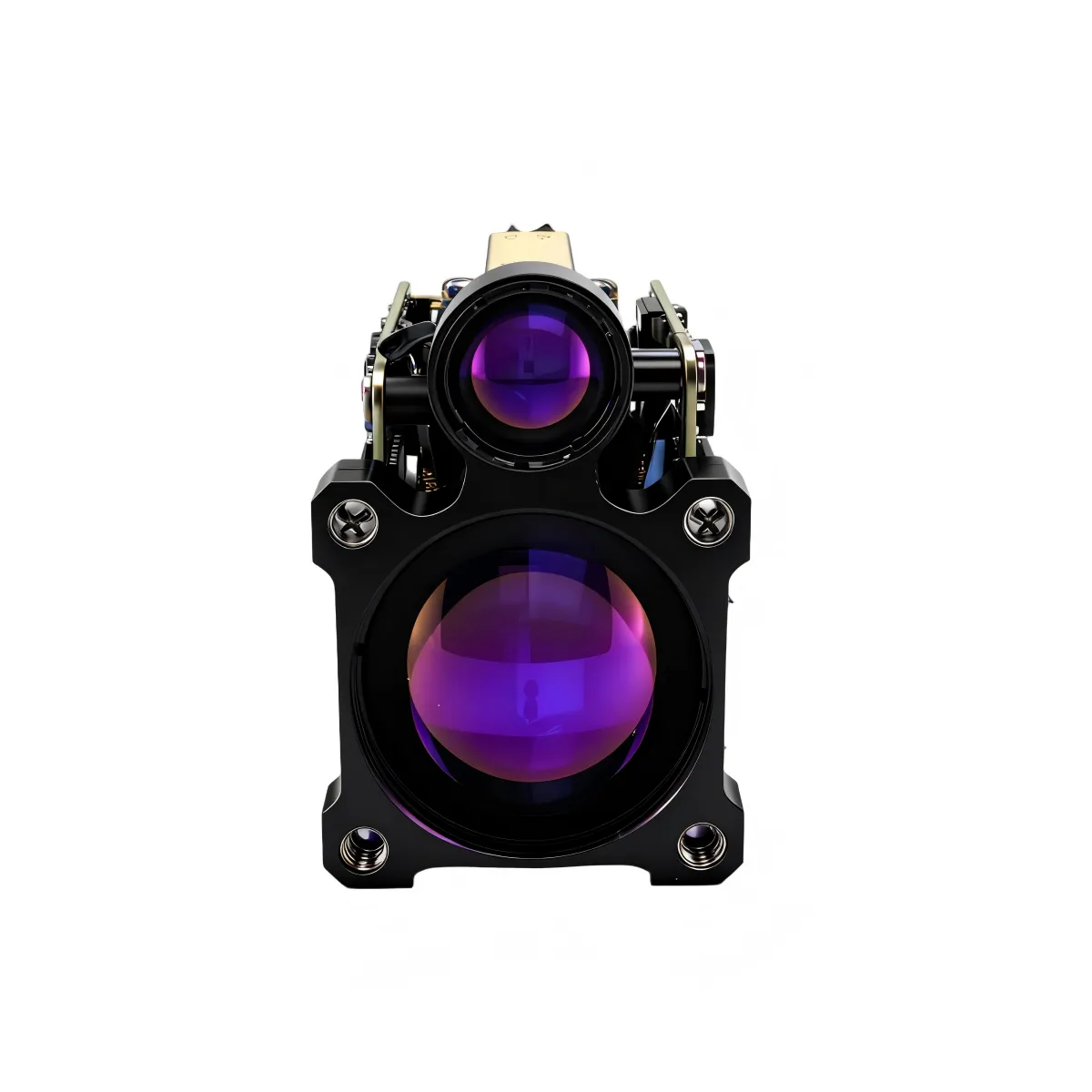

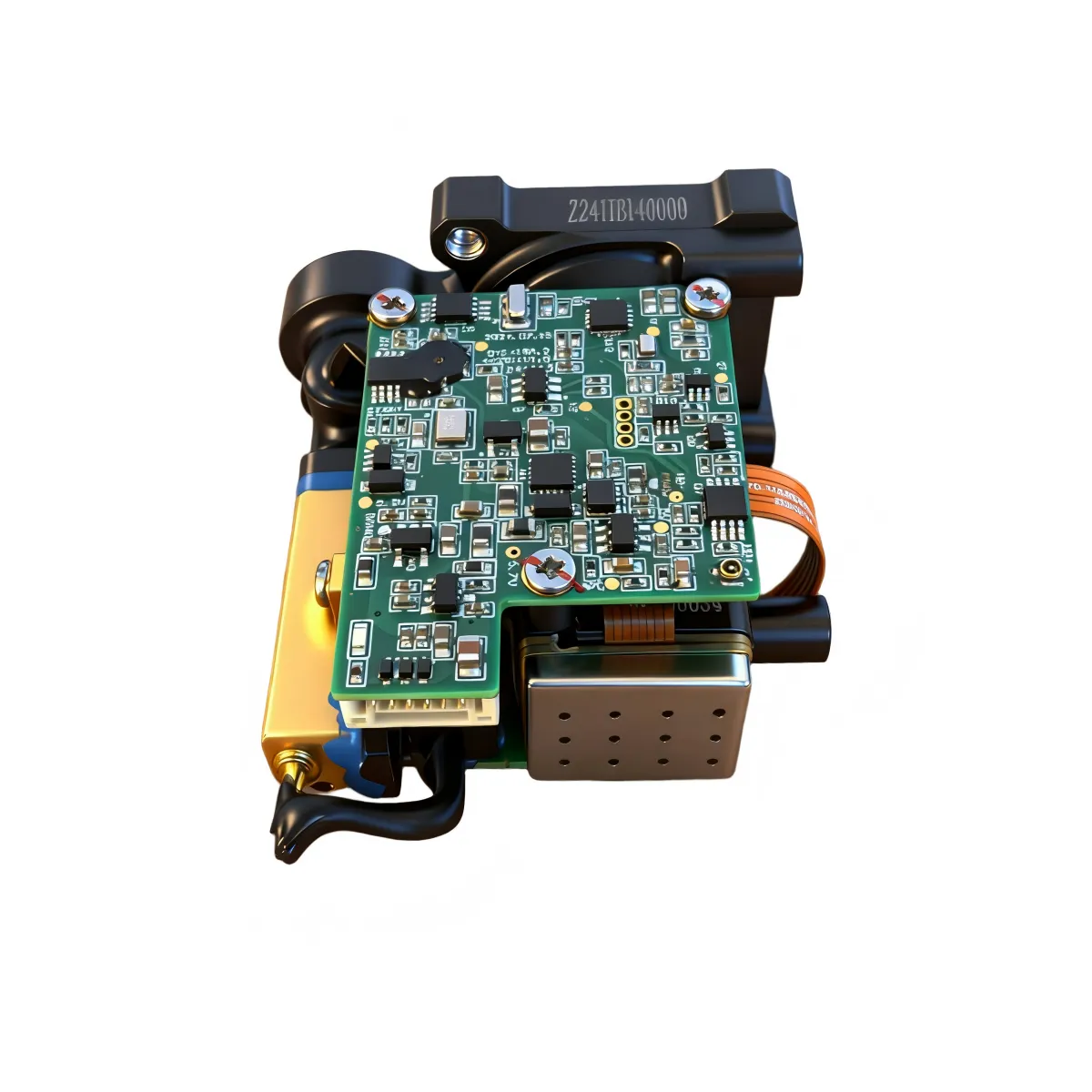

The LRF0609C Mini Laser Rangefinder Module is a compact, high-precision optoelectronic distance measurement device that utilizes a 1535 nm eye-safe laser to measure target distances through the time-of-flight (TOF) principle. Designed for integration into UAVs, intelligent robots, and tactical or industrial systems, the module provides stable, fast, and accurate ranging performance with a simple TTL serial communication interface.
With a detection range up to 6 km and accuracy within ±2 m, the LRF0609C supports first/last target detection, range gating, and a built-in self-test (BIST) function. It offers high reliability even under harsh environmental conditions, including extreme temperatures, vibration, and shock.
TECHNICAL SPECIFICATIONS
|
Parameter
|
Specification
|
|
Operating wavelength
|
1535 nm ± 10 nm
|
|
Eye safety
|
Class Ⅰ
|
|
Applicable standards
|
MIL-STD-810G
|
|
Transmitting aperture
|
Φ12 mm
|
|
Receiving aperture
|
Φ26 mm
|
|
Maximum range
|
Under visibility ≥ 12 km and relative humidity ≤ 60%, tested against a 0.3-reflectivity panel (or equivalent target): Vehicle (2.3 m × 4.6 m): ≥ 6000 m;
|
|
Minimum range
|
≤ 20 m
|
|
Range accuracy
|
≤ ±2 m
|
|
Ranging rate
|
Single shot, 1 Hz, 2 Hz, 3 Hz, 4 Hz, 5 Hz, 10 Hz
|
|
Beam divergence
|
≤ 0.5 mrad
|
|
Operating temperature
|
−40 °C to +60 °C
|
|
Storage temperature
|
−50 °C to +70 °C (to be qualified at the system level)
|
|
Vibration
|
5→50→5 Hz sweep, 1 octave/min, 2.5 g (system-level qualification)
|
|
Shock
|
1200 g, 1 ms (system-level qualification)
|
|
Overall dimensions
|
55 × 48 × 32 mm
|
|
Weight
|
≤ 62 g
|
|
Communication interface
|
TTL
|
|
Supply voltage
|
4.5 V–16 V
|
|
Power consumption
|
≤ 1.5 W (avg), ≤ 0.3 W (standby)
|
Structural dimensions

Overall dimensions:
≤ 55 mm × 48 mm × 32 mm
Figure — Mechanical and Opto-Mechanical Interface Diagram
ELECTRICAL INTERFACE
a) Supply voltage: 4.5 V–16 V
b) Standby power consumption: ≤ 0.3 W; average power consumption: ≤ 1.5 W
c) The host computer connects to the rangefinder via a 6-pin connector for interface and testing. The pin assignment of the rangefinder’s power and communication port is shown in Table 1.
Table 1 — Pin assignment of the rangefinder power and communication port
|
Pin #
|
Pin No.
|
Remarks
|
|
P-1
|
VIN+
|
Power input, 4.5–16 V
|
|
P-2
|
VIN-
|
Power ground (GND)
|
|
P-3
|
POWER_ON
|
Module power enable (TTL, 3.3 V logic level); Module ON (> 2.7 V), module OFF (< 0.3 V)
|
|
P-4
|
UART_TX
|
UART TXD (serial transmit), TTL, 3.3 V logic level
|
|
P-5
|
UART_RX
|
UART RXD (serial receive), TTL, 3.3 V logic level
|
|
P-6
|
GND
|
Serial ground (SGND)
|

Connector Pin 1 Location
