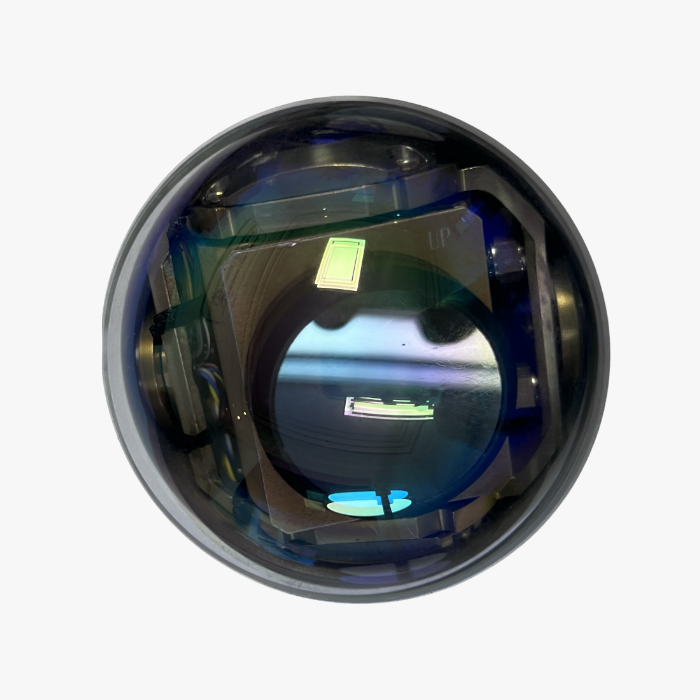

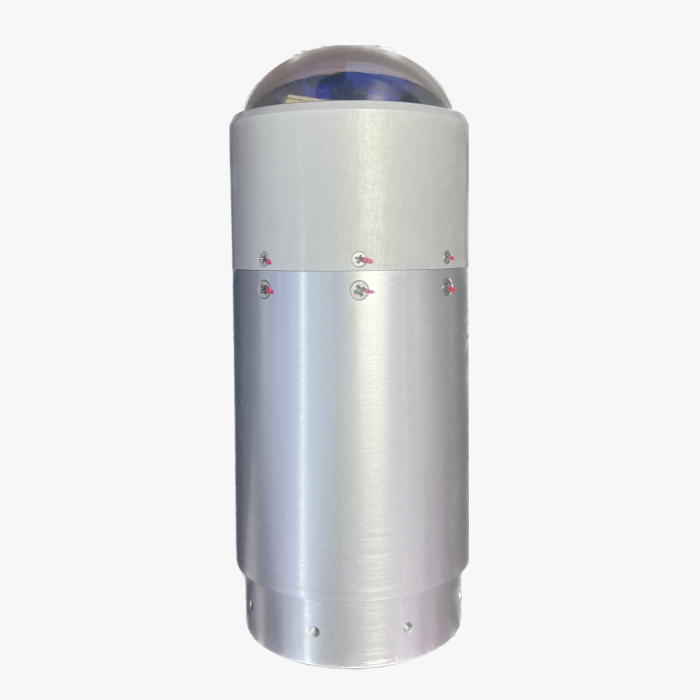

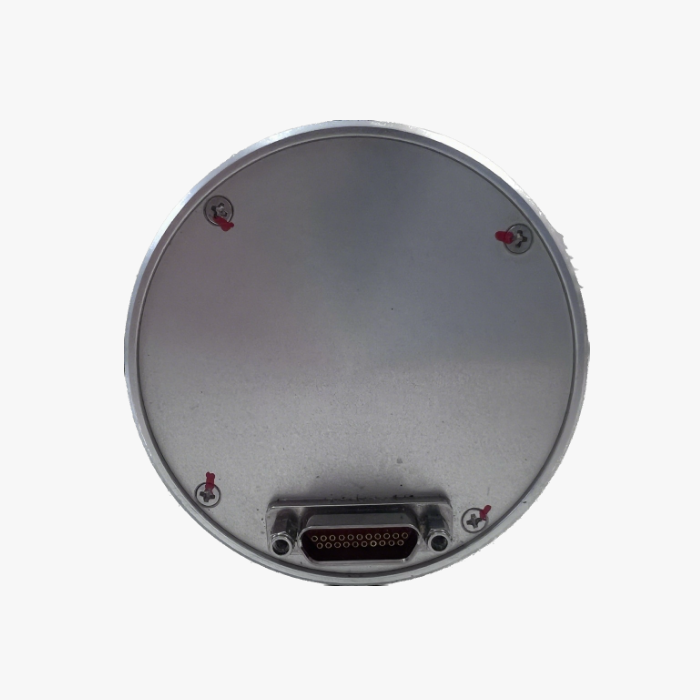

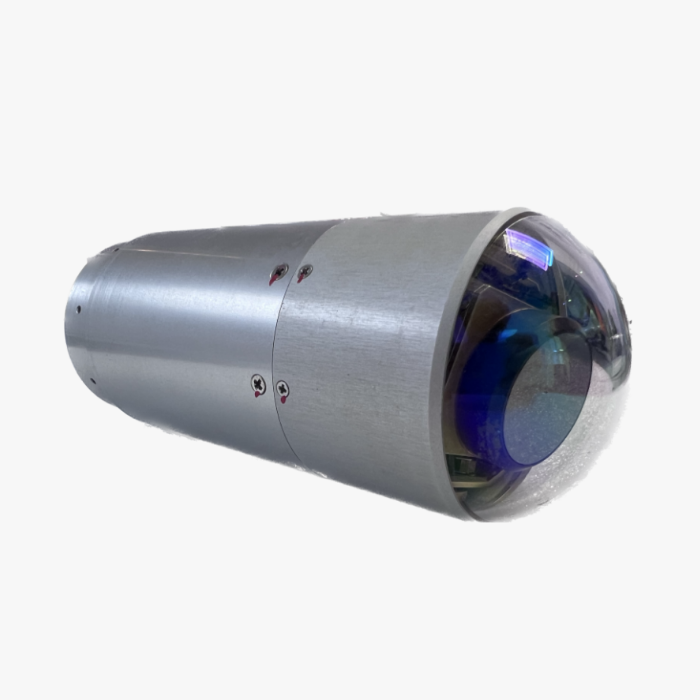

TY-LS-201 Tracking Laser Seeker
We provide a 1-year warranty on all devices, complemented by lifetime technical after-sales assistance to ensure long-term operational efficiency for your business.
PRODUCT COMPOSITION
A. TY-LS-124 Detection Module
B. LW-01 Position Marker
FEATURES
A. Long range: up to 10km under 80mj irradiation conditions;
B. High line of sight angular velocity accuracy: mean deviation ≤0.1°/s (within 5°/s);
C. Small size: product diameter is 70mm.
TECHNICAL SPECIFICATIONS
| Parameter Indicators | ||
| Mechanical Indicators | Aperture | 70mm |
| Length | 170mm | |
| Weight | 1.3kg | |
| Frame Angle Range | Heading: ±28° Pitch: ±28° |
|
| Electrical Properties | Laser Irradiation Energy | 80mj |
| Action Distance | ≥10km | |
| Blind Area | ≤50m | |
| Instantaneous Field of View | ≥±7° | |
| Maximum Tracking Angular Velocity | ≥10°/s | |
| Tracking Loop Bandwidth | ≥1Hz (45° Phase Lag) | |
| Frame angle Accuracy | ≤0.1° | |
| Line of Sight Angular Velocity Mean Deviation | Angular Velocity ≤ 2 °/s: Error≤0.1°/s 2°/s＜Angular Velocity≤10°/s: error≤15% |
|
| Line of Sight Angular Velocity Noise | ≤0.15°/s（2 σ/4km） | |
| Isolation | ≤3% (Projectile Disturbance Condition 3°/2Hz) | |
| Search Method | Manual Search, Circular Search, Fixed Axis Search | |
| Memory Time | 0.5s±0.2s | |
| Electrical Properties | Startup Time | ≤2s |
| Maximum Continuous Working Time | ≥1h | |
| Power Consumption | Supply Voltage 27±4V, Steady-State Operating Current ≤2A | |
| Communication Interface | UART, RS422 Level (Isolated) | |
| Communication Baud Rate | 115.2k bps, Adjustable | |
| Environmental Carrying Capacity | Applicable Temperature | -45℃~+60℃ |

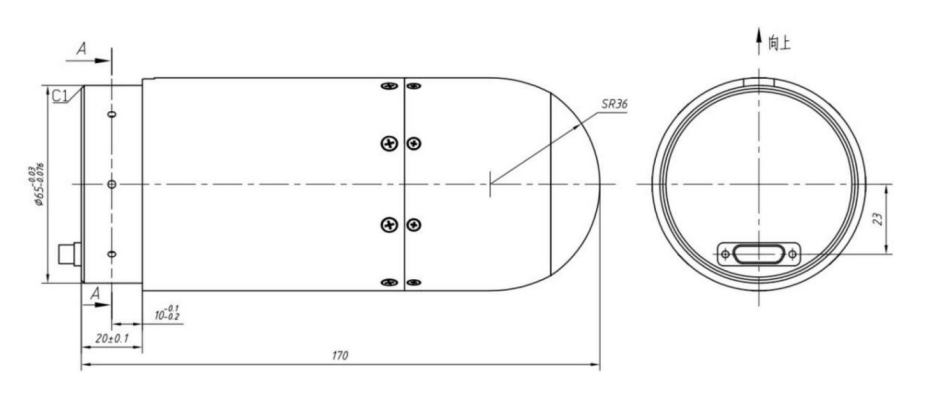

MECHANICAL DIMENSION(mm)
