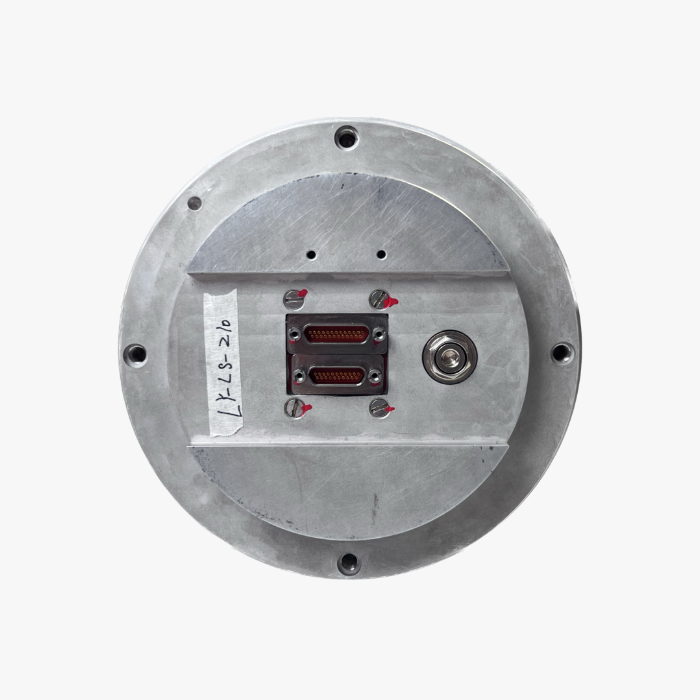

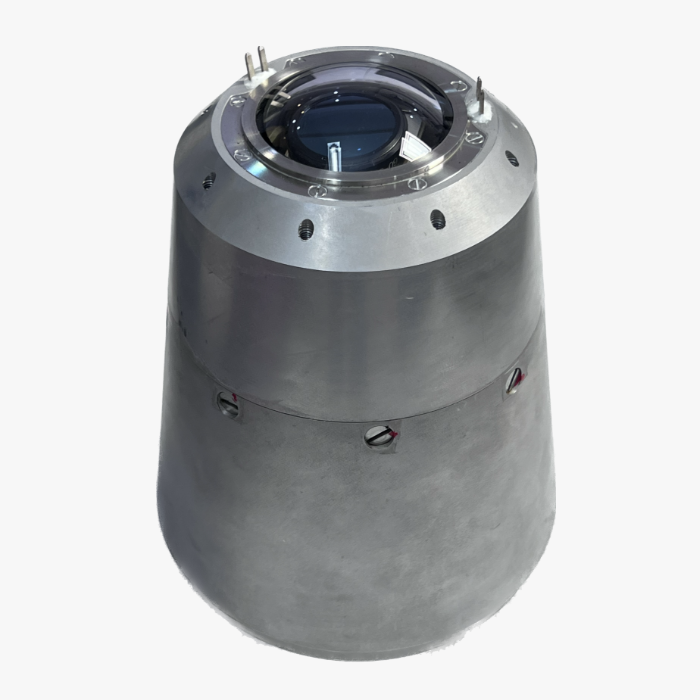

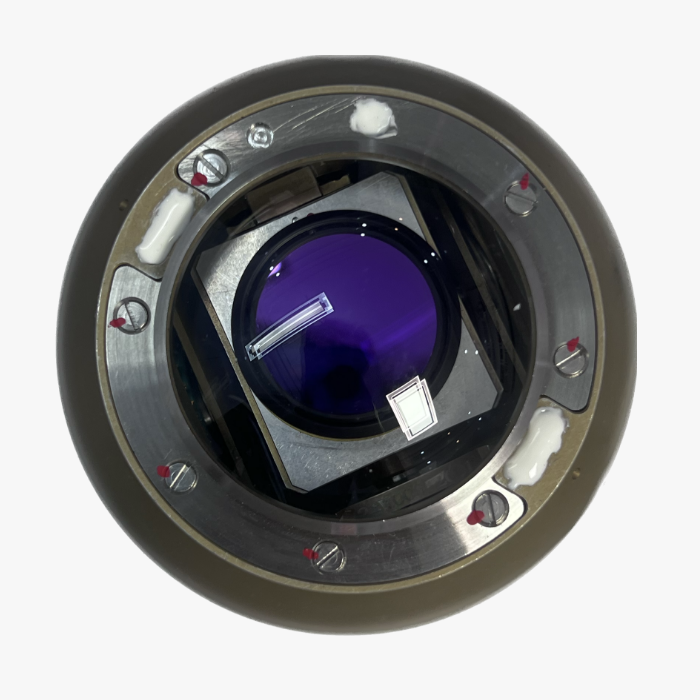

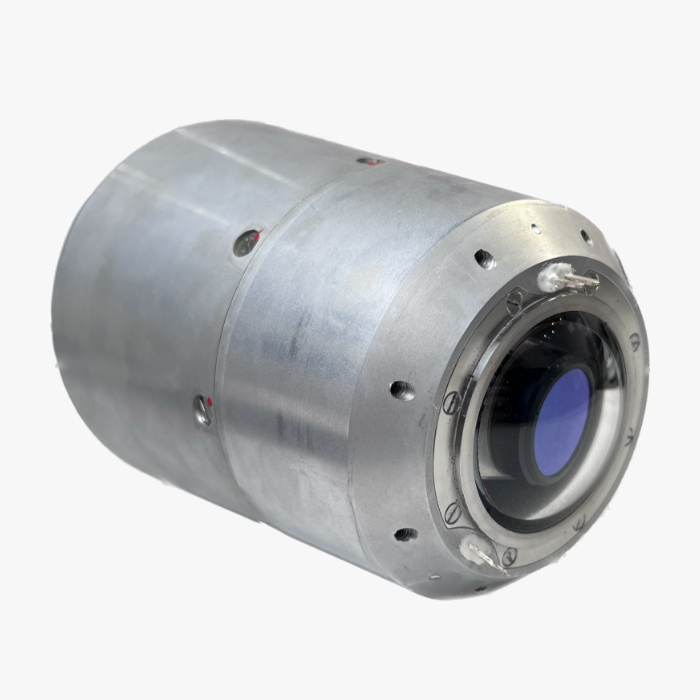

FUNCTION

A. The TY-LS-210 Laser Seeker should have the uniqueness of the selected laser code for the binding;

B. It can provide the ignition circuit for the head cover assembly;

C. It has the function of limiting the frame angle;

D. After power-on, the position marker has the function of electric locking;

E. Before receiving the "frame preset" command and capturing the target, the position marker has the function of following the preset frame command;

F. It adopts nitrogen sealing method.

PERFORMANCE INDICATORS

PERFORMANCE INDICATORS

a) Working wavelength: 1.064m;
b) Effective distance: not less than 7km (visibility not less than 10km, irradiation distance not less than 5km, laser target indicator output energy not less than 80mJ, target diffuse reflection coefficient 0.2);
c) Blind zone distance: not more than 50m (irradiation distance 500m, laser single pulse energy 80mJ);
d) Optical field of view: -12°~+12° (pitch, yaw);
e) Frame angle: -17.5°~+17.5° (pitch, yaw);
f) Frame angle output accuracy: not more than 0.3°;
g) Tracking accuracy:
1) When the line of sight angular velocity is greater than 1.5°/s and not greater than 4°/s, the relative error of the line of sight angular velocity is not more than 10%;
2) When When the line of sight angular velocity is not greater than 1.5°/s, the line of sight angular velocity noise is not greater than 0.2°/s (2σ, indoor equivalent 3km energy)
h) Coding type and number of groups: 8 groups of precise frequency coding (coding segments 0000, 0072~0078), 13 groups of hopping frequency coding (coding segments 0079~0091);
i) Power-on default coding setting: 50ms (coding segment 0000);
j) Target acquisition time: not greater than 0.4s;
k) Isolation: not greater than 3% (3°@2Hz sinusoidal swing), 3% (5°@1Hz sinusoidal swing);
l) Target tracking angular velocity: the maximum tracking angular velocity in the pitch direction is not less than 4°/s, and the maximum tracking angular velocity in the yaw direction is not less than 2.5°/s;
m) Target loss strategy:
1) After the seeker loses the target, it will feedback the photoelectric signal loss information to the control system;
2) Within 0.5s (inclusive) after the seeker loses the target, the line of sight angular velocity is output according to the previous valid data frame. After more than 0.5s, the line of sight angular velocity output value is zero;
3) 0.5s after the seeker loses the target, it will return to the preset frame command following state until it can track normally again;
4) After the seeker recaptures and tracks the target, the photoelectric information and line of sight angular velocity will return to normal output;
5) If the seeker determines that it has entered the blind spot, the line of sight Angular velocity output is zero;
n) Self-test time: not more than 5s;
o) Continuous working time: not less than 30min for electric lock working condition, not less than 5min for tracking working condition;
p) Resistance of the circuit breaker switch: not more than 10Ω;
q) Insulation resistance: The insulation resistance of the mutually insulated parts of the seeker is not less than 20MΩ under normal test atmospheric conditions, and not less than 2MΩ under hot and humid climate conditions;
r) Throw shield signal line: high temperature hot wire (not less than 200℃), wire diameter 0.15mm², resistance not more than 0.5Ω (pin to corresponding pin of connector).

MECHANICAL DIMENSION(mm)
