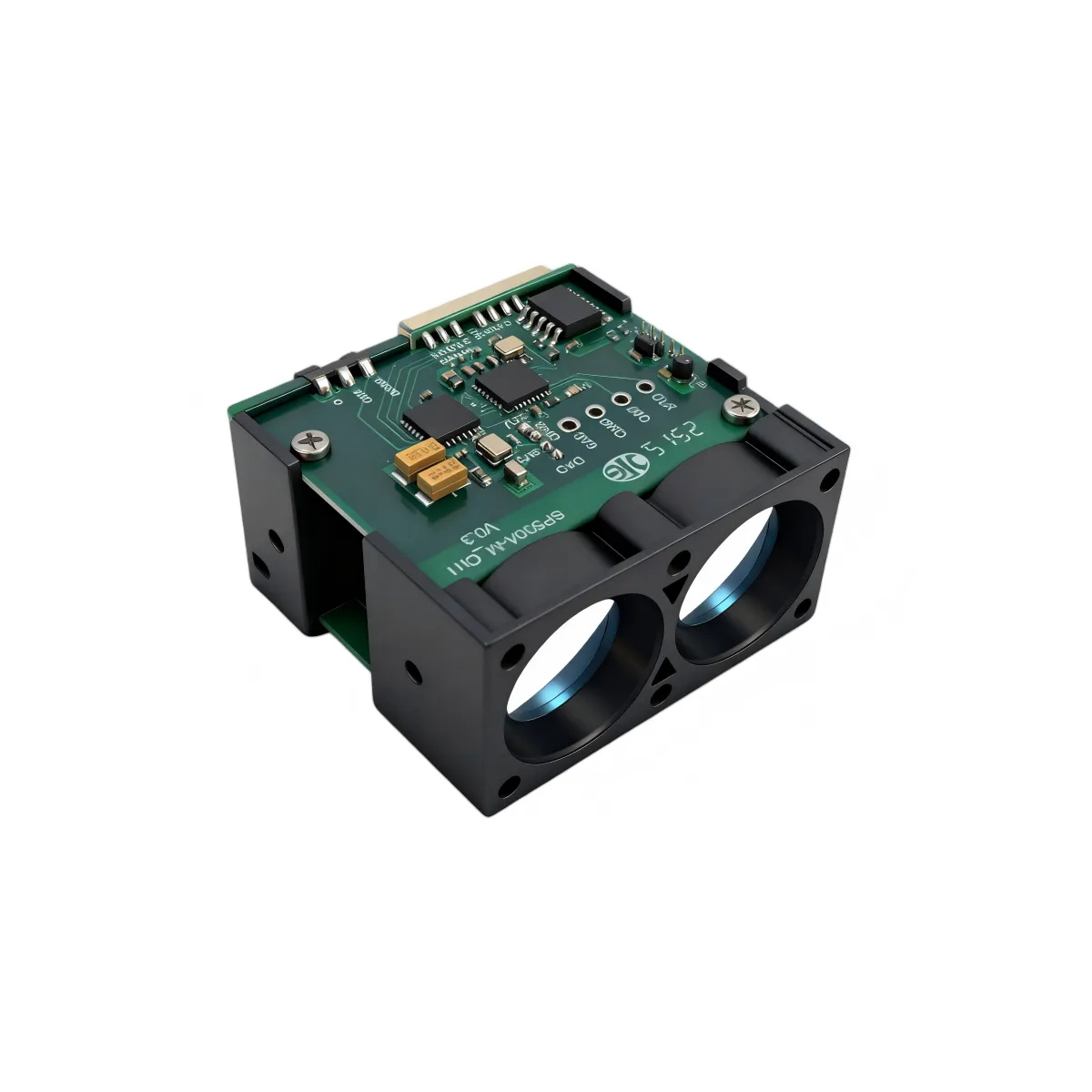

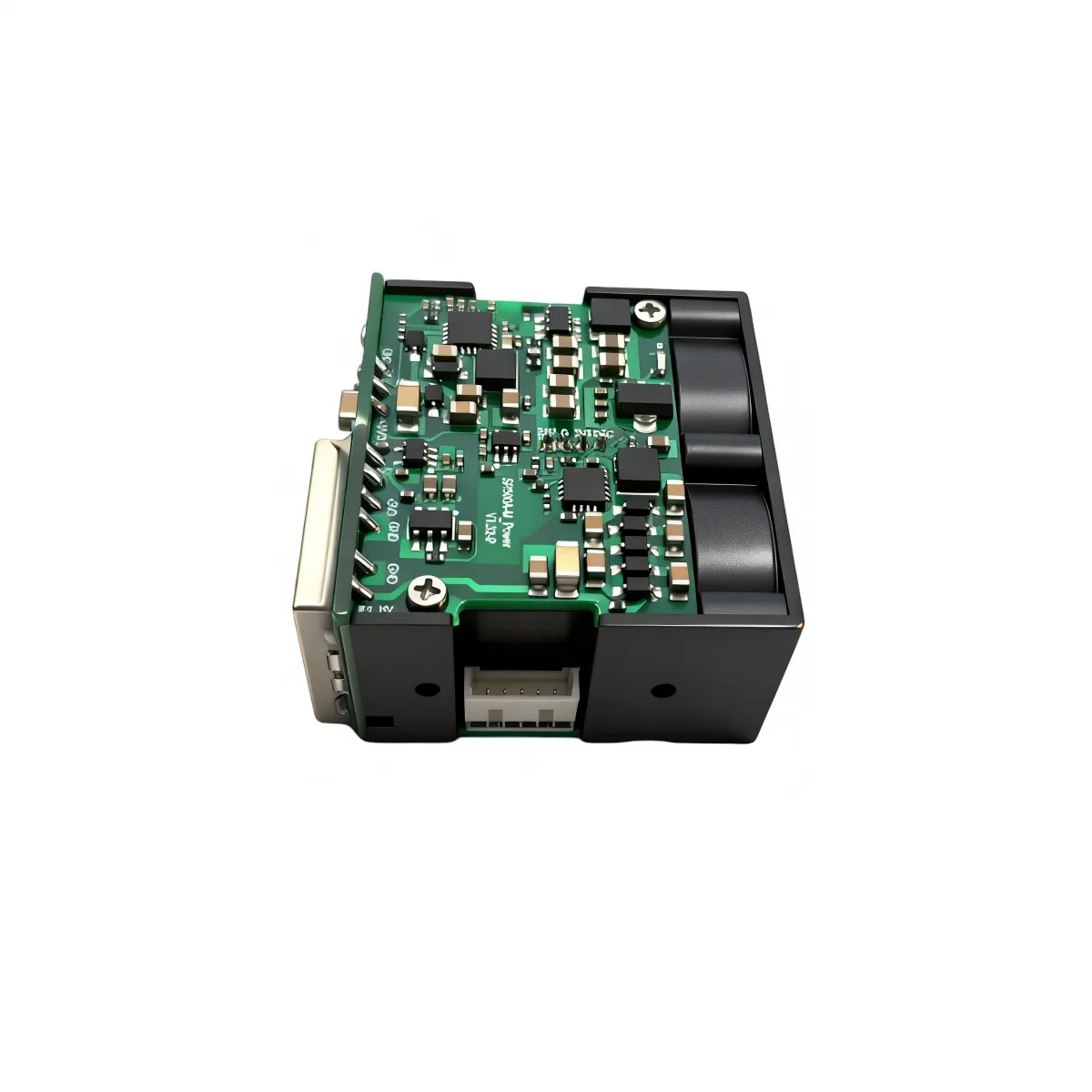

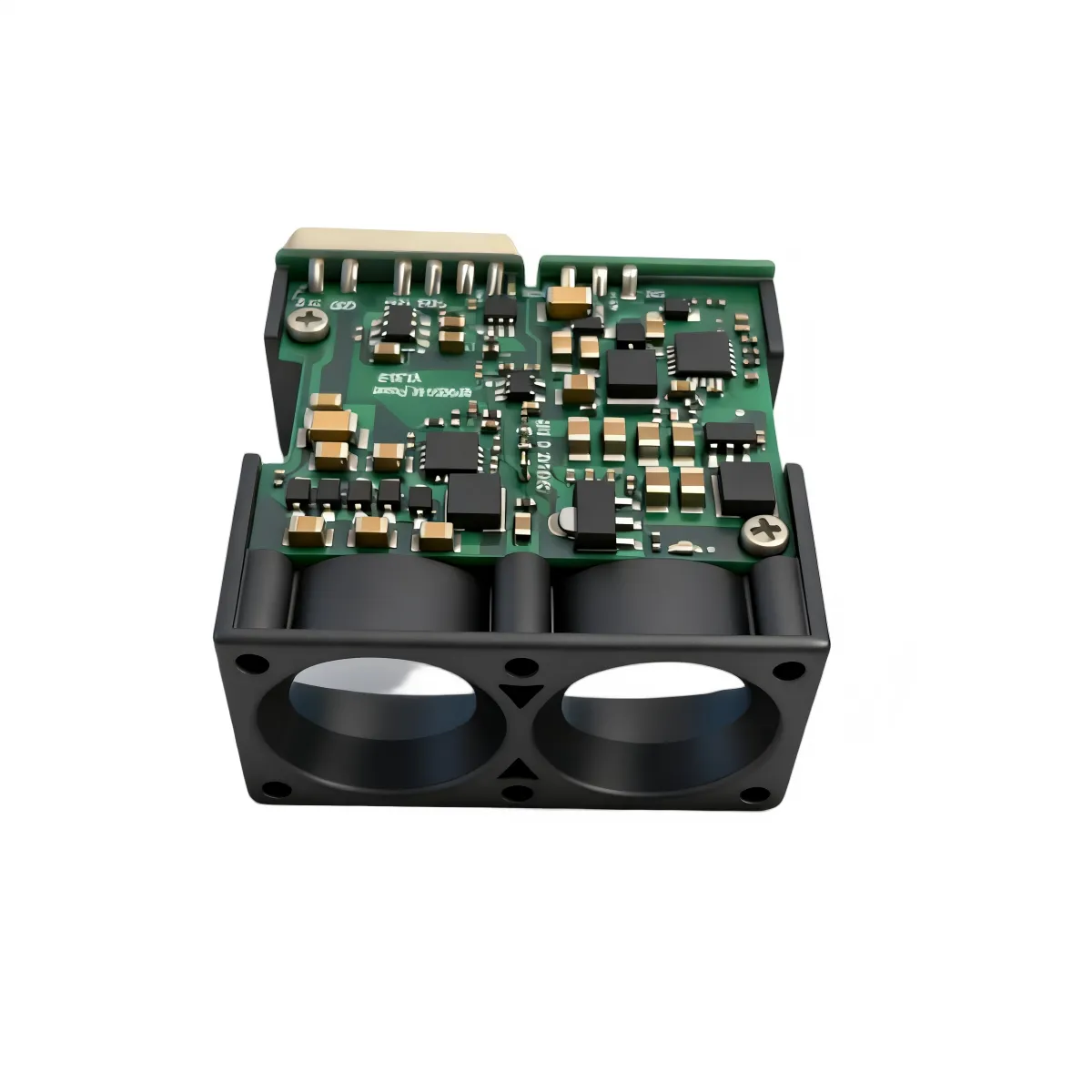

905nm LRF1500H LiDAR 1500m
DESCRIPTION
LRF1500H-02 is a long-range laser ranging module that employs 905nm laser technology, with a maximum measurable distance reaching 1500 meters. It merges the observational functionality of a telescope with the high-precision measurement performance of a laser rangefinder, enabling the simultaneous collection of multiple target-associated data—such as straight-line distance, horizontal distance, height difference, and pitch angle. With a compact and lightweight structure, this module is perfectly suited for integration into unmanned aerial vehicles (UAVs), pod systems, and other platforms that have strict space and weight constraints. Guided by a modular design concept, it offers customers enhanced flexibility for secondary development and system integration.
TECHNICAL SPECIFICATIONS
|
# |
Model |
LRF1500H |
|
1 |
Range |
0.05m～1500m (90%reflectivity), 0.05m～300m (10%reflectivity) |
|
2 |
Frequency |
1KHz or 50Hz (Switch automatically to match the intensity of reflected signals) |
|
3 |
Accuracy |
±10cm (<10m), 1% (≥10m) |
|
4 |
Repeatability |
±5cm (<10m), ±100cm@1500m |
|
5 |
Ambient Light Immunity |
100KLux |
|
6 |
Central Wavelength |
905nm |
|
7 |
Photobiological Safety |
Class1 |
|
8 |
FOV |
about 4mrad |
|
9 |
Wavelength for Indication |
N/A |
|
10 |
Photobiological Safety for Indication |
N/A |
|
11 |
Supply Voltage |
9~36VDC |
|
12 |
Peak Current |
100mA |
|
13 |
Average Current |
55mA |
|
14 |
Average Power Consumption |
1.2W |
|
15 |
Communication Interface |
UART/IIC |
|
16 |
Protection Level |
N/A |
|
17 |
Dimension |
33 x 34 x 18mm |
|
18 |
Weight |
20±2g |
|
19 |
Operating Temperature |
-20℃~+60℃ |
|
20 |
Wire Specification |
1.25mm, 5P 50cm stranded wires |
|
21 |
Customization |
available in appearance / structure / output protocol |
OUTLINE DIMENSION(mm)
PIN INTERFACE
 |
||
|
No. |
Definition / Wire Color |
User Interface |
|
1 |
9-36V (Red) |
External Power + |
|
2 |
Power GND (Black) |
External Power - |
|
3 |
Port GND (Yellow) |
GND |
|
4 |
TX (Green) |
RX |
|
5 |
RX (Blue) |
TX |
