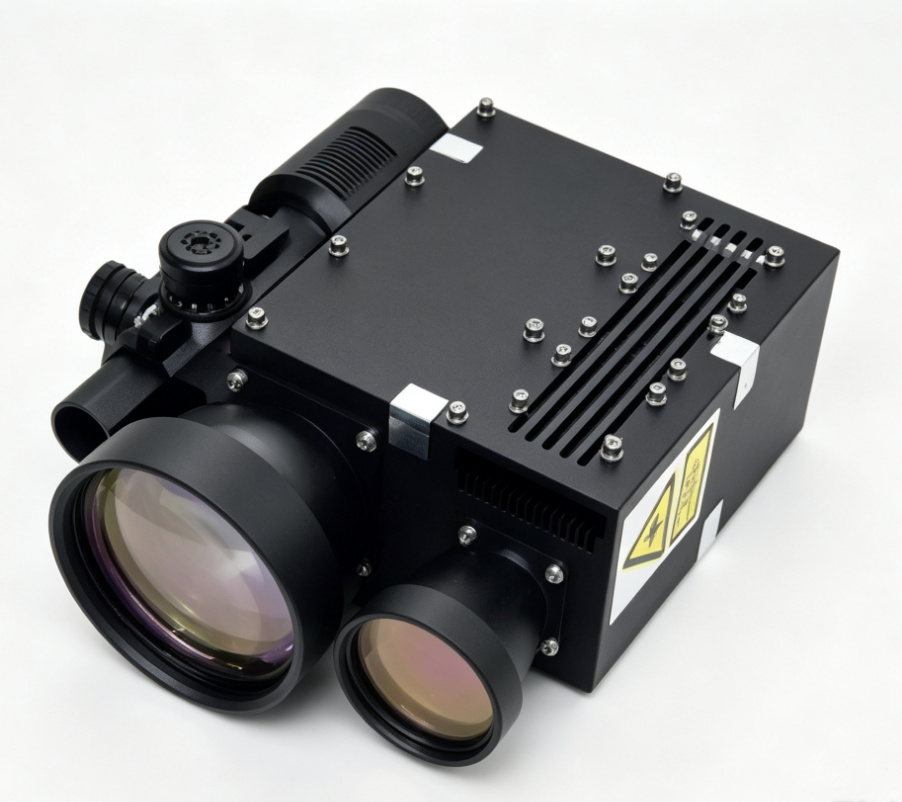

1570nm OPO Laser Rangefinder Module 20km LRF40H20
DESCRIPTION
LRF40H20 is a 1570nm eye-safe OPO laser rangefinder module based on diode-pumped optical parametric oscillation technology. Integrated with precision optical, mechanical and electronic components, this rangefinder supports ultra-long-distance ranging up to 40 km.
With stable ranging precision, compact structure and robust environmental adaptability, the unit adopts standard RS422 communication interface for easy integration. Widely applied in airborne electro-optical pods, terrain survey, border monitoring, search & rescue and long-range observation systems.
TECHNICAL SPECIFICATIONS
|
Eye safety/level |
Class1/1M |
|
Laser Wavelength |
1570nm±20nm |
|
Ranging Capability |
Under better-than-standard visibility conditions, for a 1m2 flying target (reflectivity >30%), the operating range R is ≥15km; for a large target (reflectivity >30%), the operating range R is ≥40km. |
|
Minimum Ranging Distance |
200m |
|
Ranging Accuracy |
±5m |
|
Ranging Frequency |
1～20Hz |
|
Accuracy |
≥98% |
|
Pulse width |
15ns±5ns |
|
Laser energy |
>5mJ (at the laser light source output) |
|
Divergence Angle |
≤0.6mrad |
|
Dimensions (Length * Width * Height) |
≤288.50mm×156mm×76mm |
|
weight |
3.8kg |
|
Operating power consumption |
150W |
|
Power Supply |
18~30V |
|
Communication Interface |
RS422 |
|
Operating Temperature |
-40℃～+60℃ |
|
Storage Temperature |
-55℃～+70℃ |

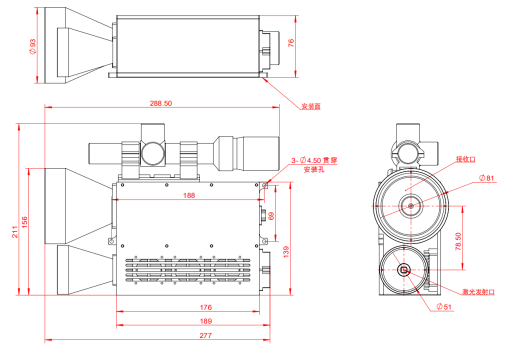

OUTLINE DIMENSION(mm)
ELECTRICAL INTERFACE
Distance Measurement Module Connector Pinout Definition
Power Supply and Control
The electrical connection uses a J30JM-15TJL connector, and the cable definitions are as follows:
|
Pin |
Definition |
Content |
Remarks |
|
1 |
TX+ |
RS422 |
Transmit to Host (Upstream / Host PC) |
|
2 |
TX - |
RS422 |
Transmit to Host (Upstream / Host PC) |
|
3 |
RX- |
RS422 |
Receive from Host (Downstream / Host PC) |
|
4 |
RX + |
RS422 |
Receive from Host (Downstream / Host PC) |
|
5 |
SGND |
Ground RS422 |
|
|
6 |
TRG+ |
External Trigger Signal + |
Reserved External Trigger Input Signal |
|
7 |
TRG- |
External Trigger Signal − |
|
|
8-11 |
24+ |
DC 24 V Power + |
|
|
12-15 |
GND |
24 V Power Ground (GND) |
