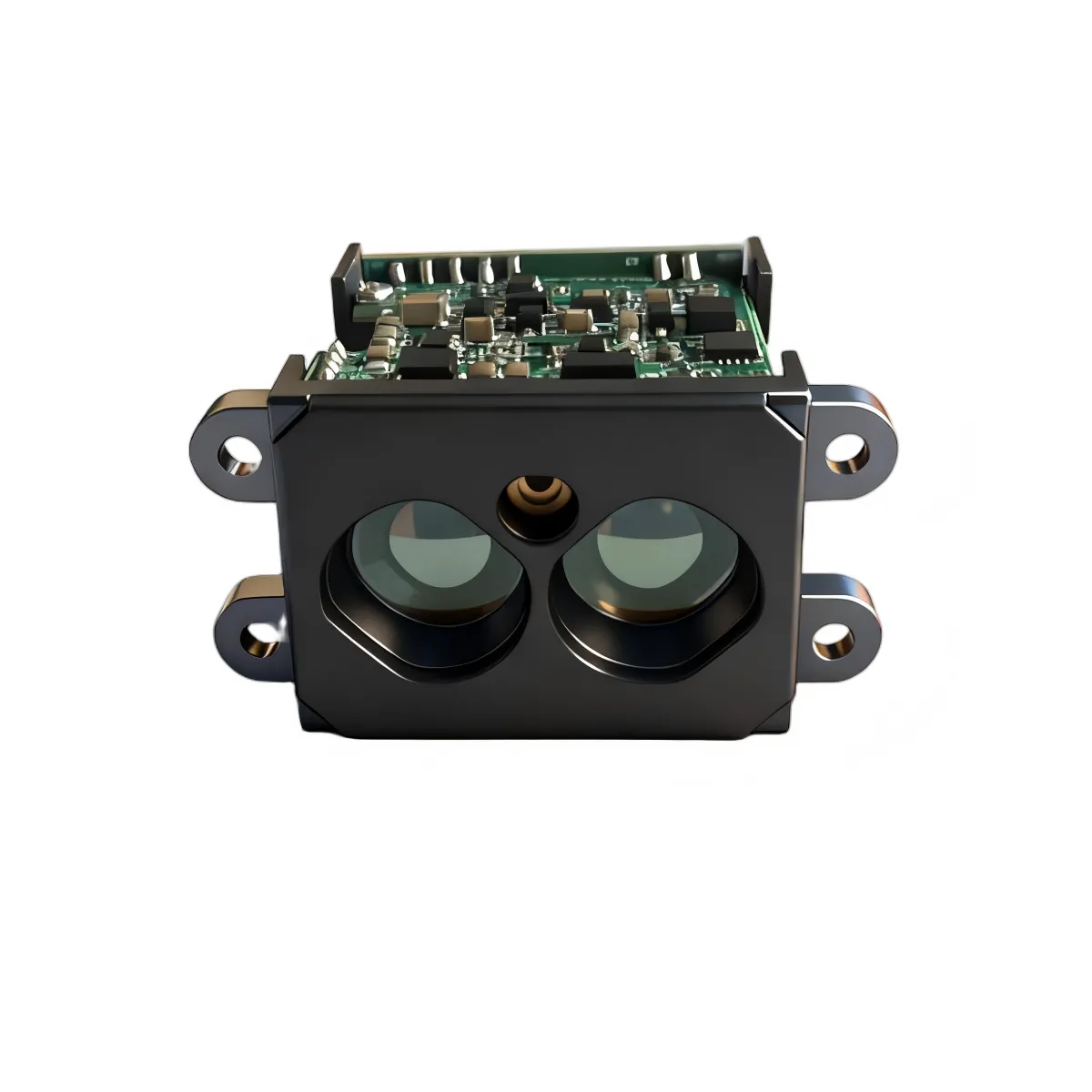

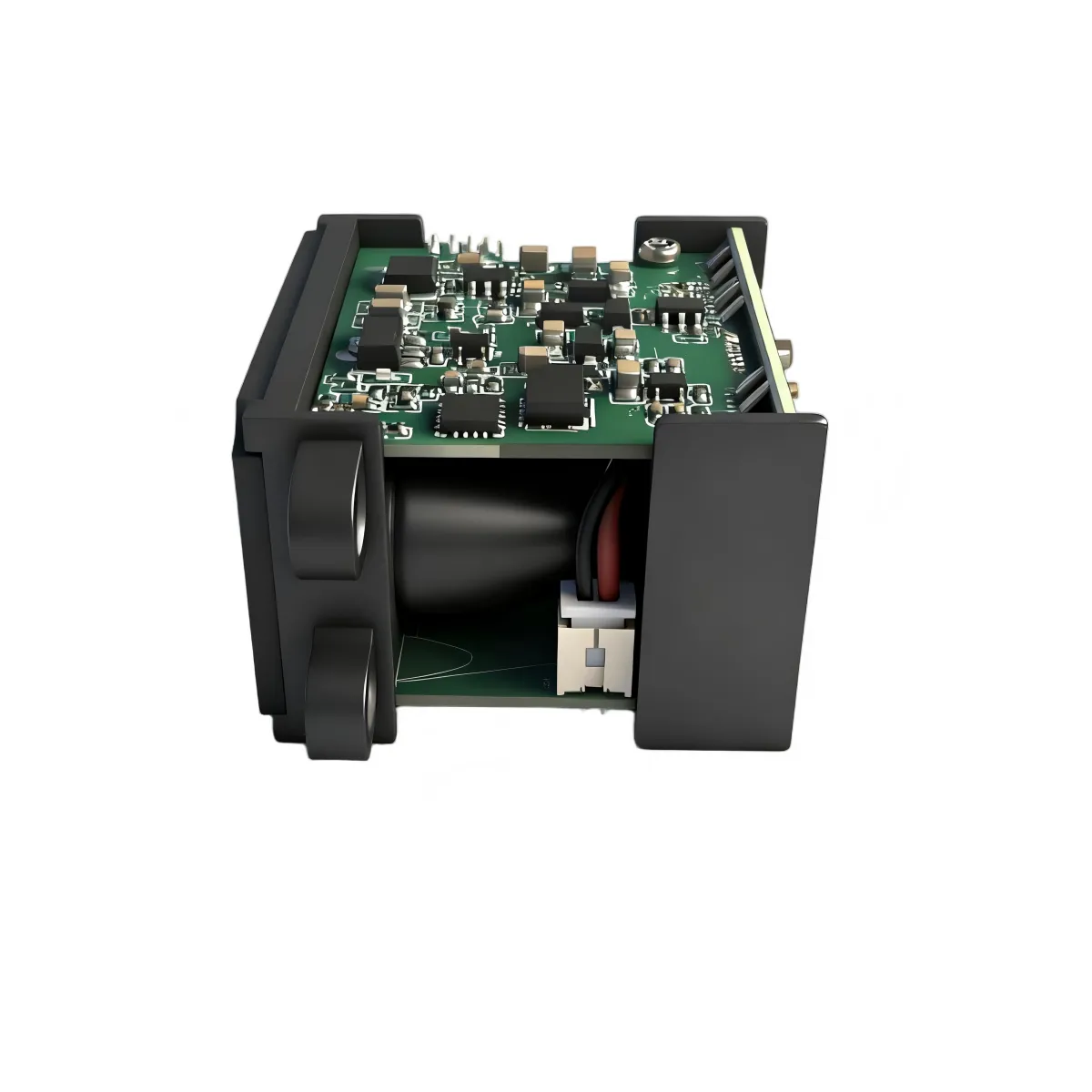

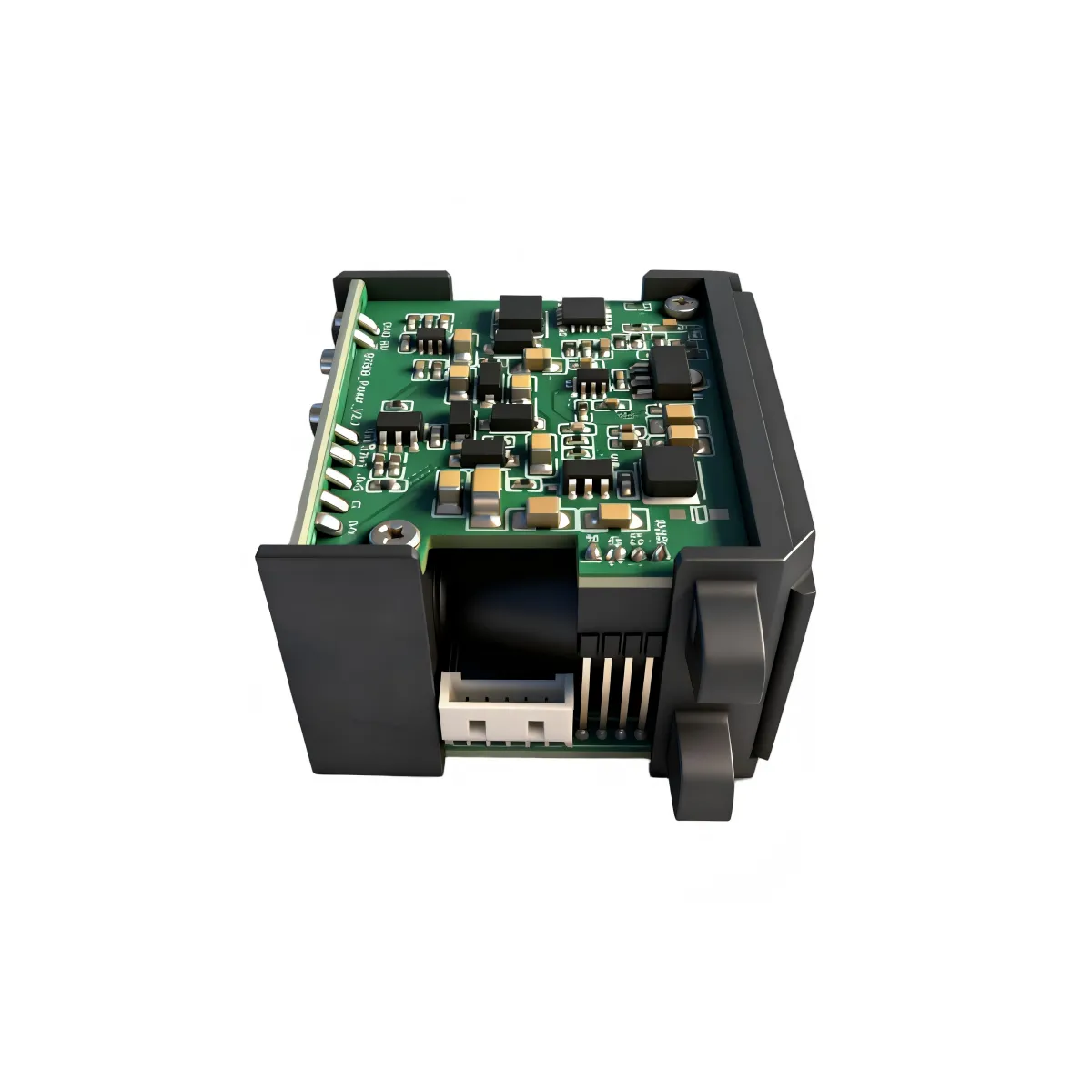

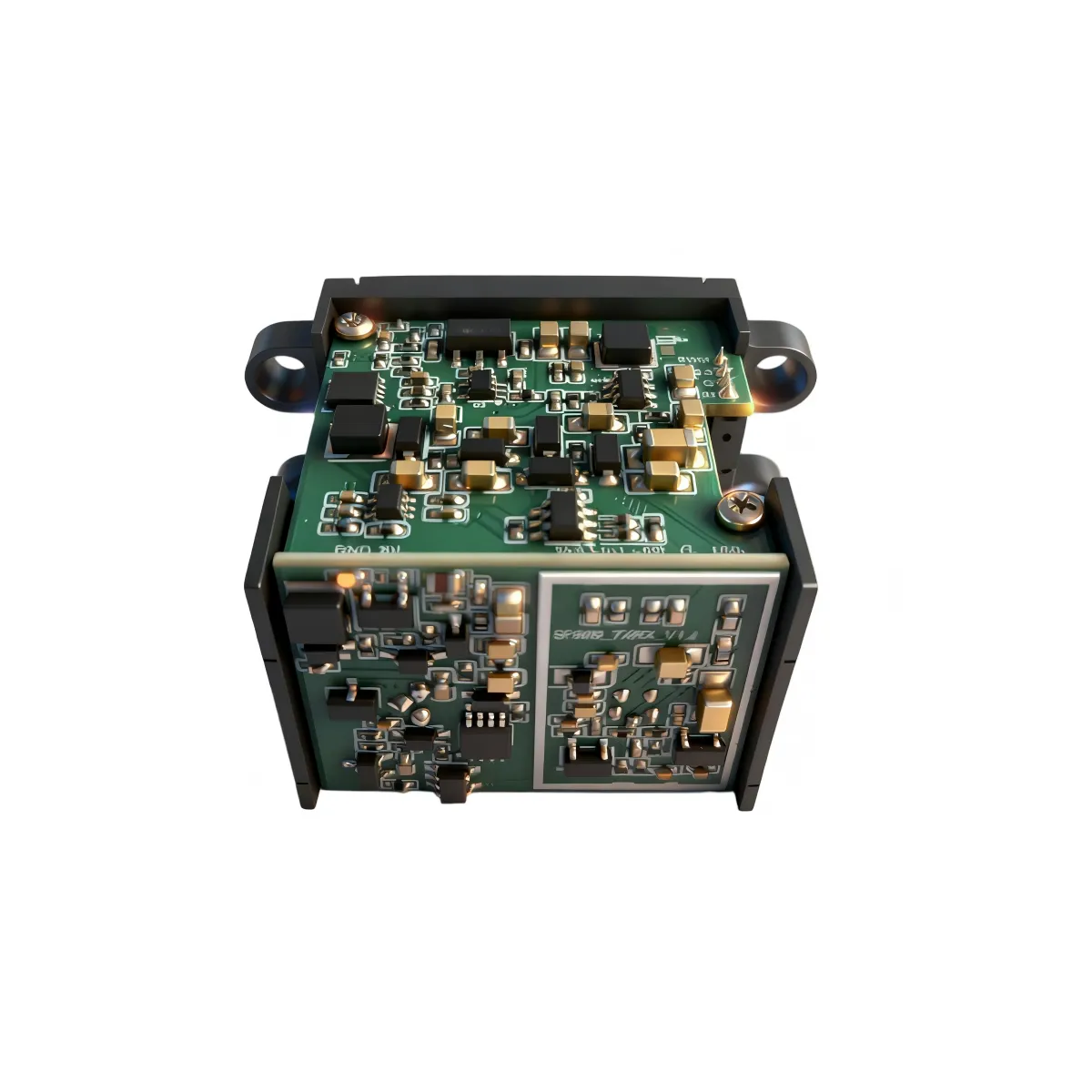

905nm LRF50H LiDAR 50m
DESCRIPTION
LRF50H-02 is a mid-range, high-frequency laser ranging module that comes with an integrated coaxial aiming light (which can be switched freely), making it easier for users to align and install. It operates at a 905nm laser wavelength and has strong resistance to ambient light, ensuring stable performance in various indoor and outdoor settings. Thanks to its high-frequency measurement function, it can acquire data quickly with millimeter-level precision, rendering it suitable for high-demand applications like industrial automation, robot navigation, construction surveying, and security monitoring.
TECHNICAL SPECIFICATIONS
|
# |
Model |
LRF50H |
|
1 |
Range |
0.05m～50m (90%reflectivity), 0.05m～15m (10%reflectivity)1 |
|
2 |
Frequency |
20Hz～10KHz (Default: 1KHz) |
|
3 |
Accuracy |
±5cm(＜10m) , 1%(≥10m)(2σ) |
|
4 |
Repeatability |
±5cm |
|
5 |
Ambient Light Immunity |
45m@100KLux2 |
|
6 |
Central Wavelength |
905nm |
|
7 |
Photobiological Safety |
Class 1 |
|
8 |
FOV |
about 4mrad |
|
9 |
Wavelength for Indication |
650nm (visible red light) |
|
10 |
Photobiological Safety for Indication |
Class 2 |
|
11 |
Supply Voltage |
9~36VDC |
|
12 |
Peak Current |
24V@100mA |
|
13 |
Average Current |
24V@34mA |
|
14 |
Average Power Consumption |
0.8W |
|
15 |
Communication Interface |
UART |
|
16 |
Protection Level |
N/A |
|
17 |
Dimension |
38 x 20 x 30 mm |
|
18 |
Weight |
15±2g |
|
19 |
Operating Temperature |
-20℃~+60℃ （No condensation，indicator red light automatically turns off when under -20℃） |
|
20 |
Wire Specification |
5-pin 1.25mm terminal, specification M1250V-05P, with 50cm tinned loose wire |
|
21 |
Customization |
available in appearance / structure / output protocol |
(Note: 1. This parameter was measured at 25°C in an indoor environment.
2. This parameter was measured with a 90% reflector in an outdoor environment at 25°C.)
OUTLINE DIMENSION(mm)
PIN INTERFACE
 |
||
|
No. |
Definition / Wire Color |
User Interface |
|
1 |
9~36V (Red) |
External Power + |
|
2 |
GND (Black) |
GND |
|
3 |
GND (Yellow) |
GND |
|
4 |
TX (Green) |
RX |
|
5 |
RX (Blue) |
TX |
