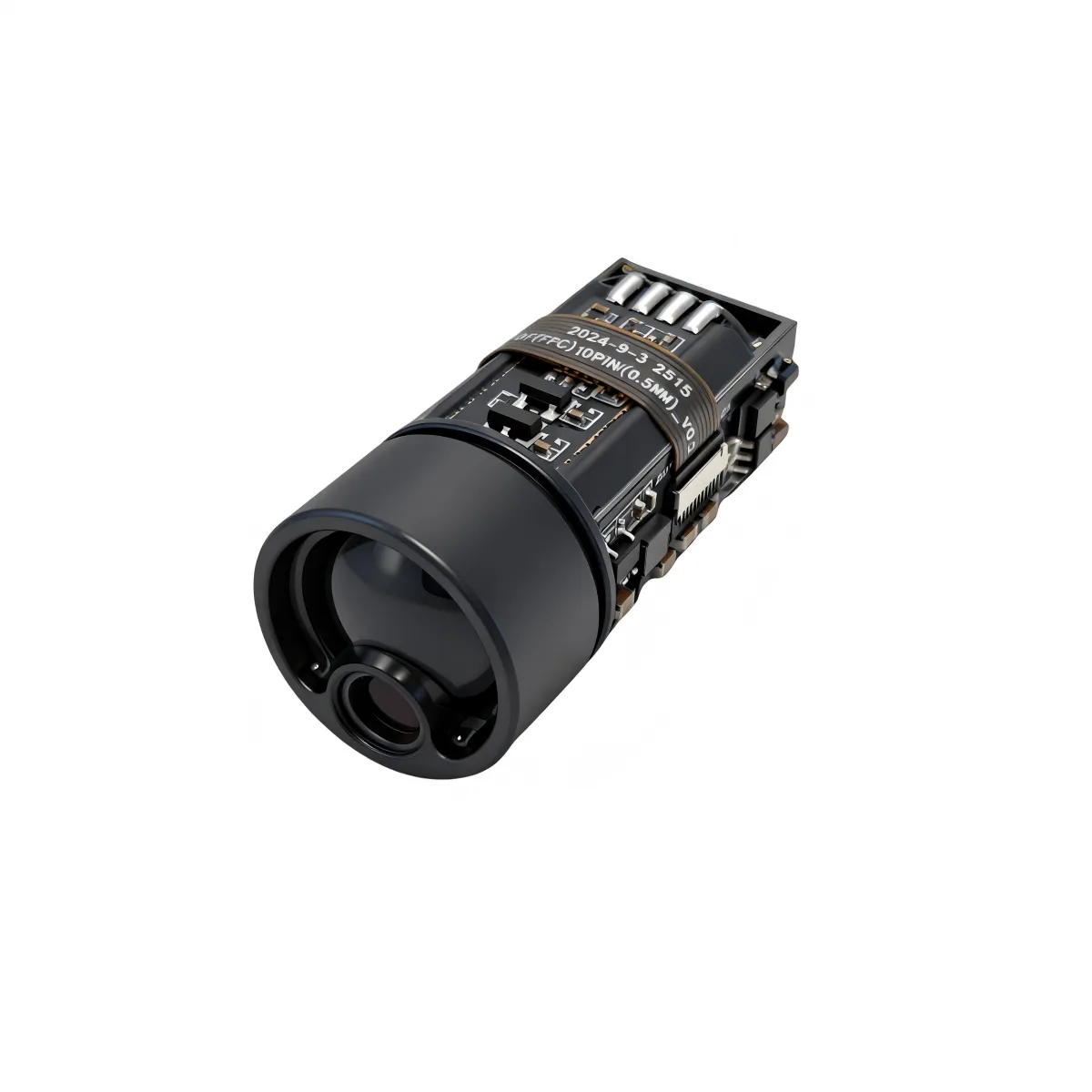

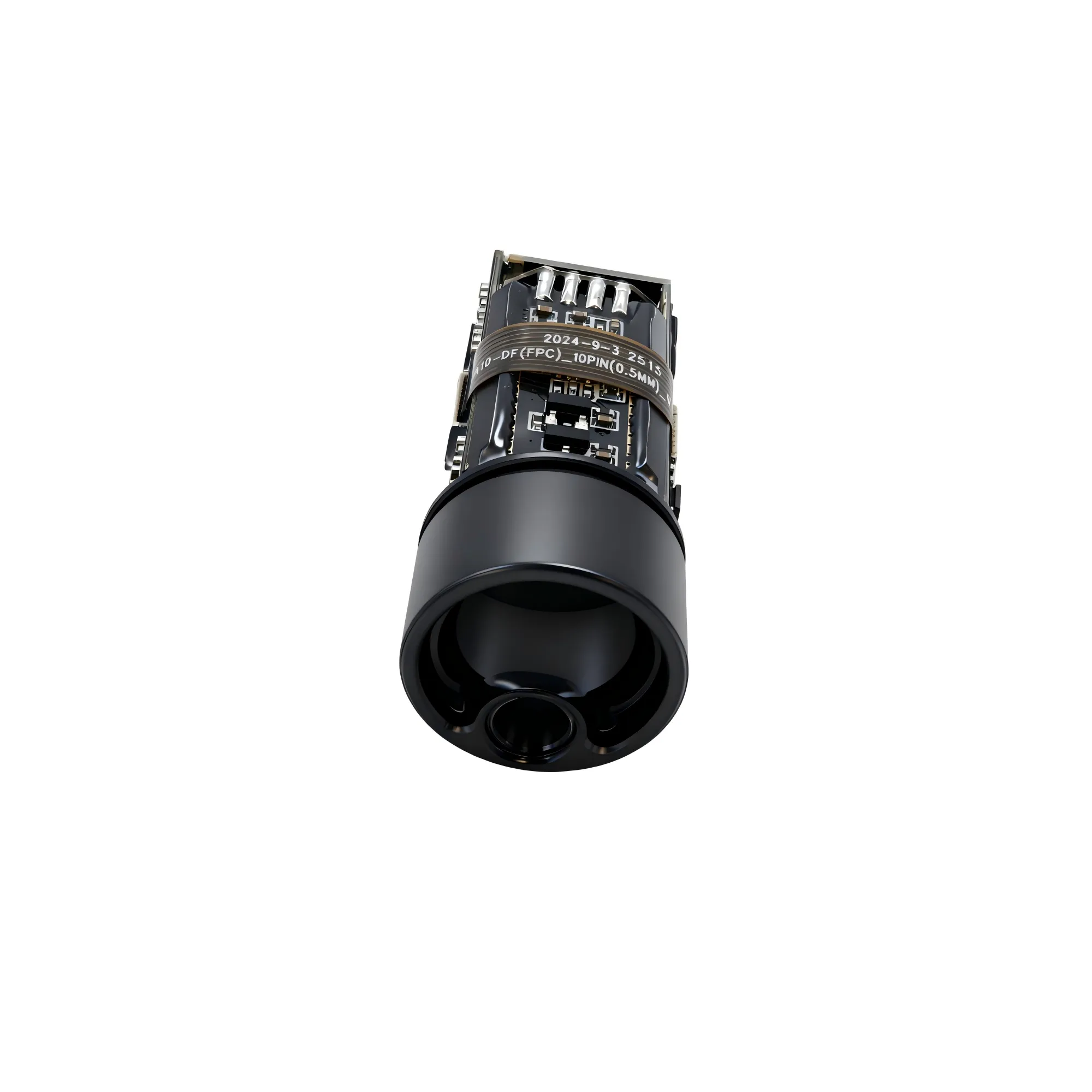

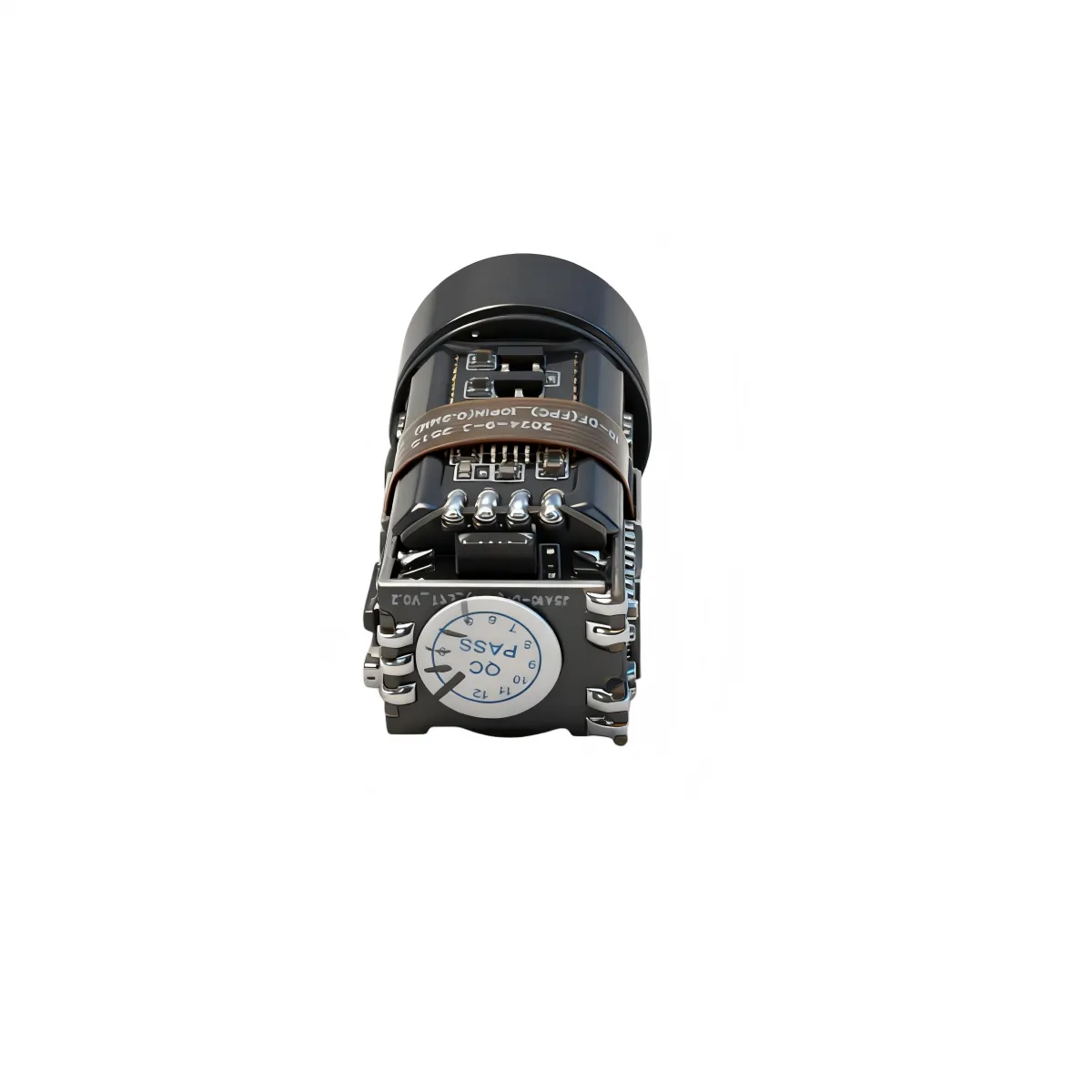

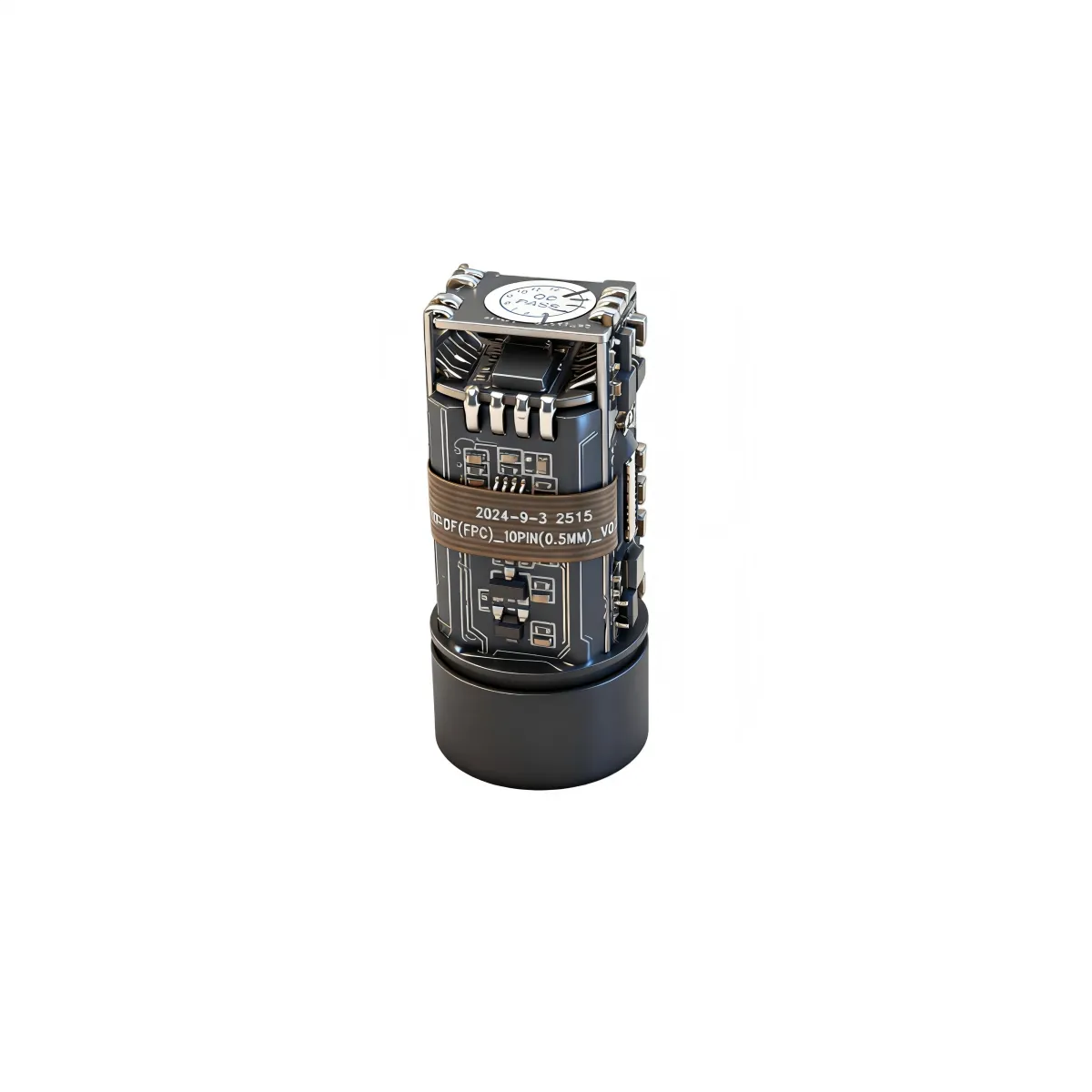

905nm Laser Rangefinder Module 1km
DESCRIPTION
Erdi Tech's newly developed laser ranging module. This 905nm laser ranging module employs Time-of-Flight (TOF) technology to achieve high-precision distance measurement (5-1000m range) by calculating laser beam round-trip time. Featuring direct TTL-to-MCU connectivity, compact form factor (<10.5g), and low power consumption, it is suited for autonomous systems, surveying equipment, and industrial automation. Its extremely small size makes the product very popular.
TECHNICAL SPECIFICATIONS
|
Performance Indicators |
|
|
Eye safety class |
Class 1(IEC 60825-1) |
|
Laser wavelength |
905±10nm |
|
Laser divergence angle (typical) |
4×6mrad |
|
Receiver field of view |
~8mrad |
|
Maximum range (Visibility ≥ 6Km) |
≥1000m @70% reflectivity, building targets |
|
Minimum range |
5m |
|
Ranging accuracy (Construction target) |
d≤200m:±0.7m d>200m:±（0.7+0.0004*d）m (d represents distance, in meters) |
|
Measurement frequency |
1~3Hz |
|
Accuracy rate |
≥98% |
|
Measurement resolution |
0.1m |
|
Electrical Specifications |
|
|
Baud rate |
15200bps (factory setting)/57600bps/38400bps/9600bps |
|
Interface type |
UART(TTL_3.3V) |
|
Supply voltage |
DC 3.3V~5V |
|
Standby power consumption |
≤0.5W |
|
Operating power consumption (+3.3Vin) |
≤0.85W |
|
Startup time |
≤550ms |
|
Physical characteristics |
|
|
Weight |
10±0.5g |
|
Dimensions |
Φ17×37.2 mm |
|
Shock |
1200g,1ms |
|
Vibration |
5~50~5 Hz, 1 octave/min, 2.5g |
|
Environmental adaptability |
|
|
Operating temperature |
-20～+70℃ |
|
Storage temperature |
-25～+75℃ |
|
Reliability |
MTBF≥1500h |
OUTLINE DIMENSION(mm)
PIN INTERFACE
Interface Type: UART (TTL_3.3V)
Connector Model: HC-0.8-6PWT
|
Pin |
Definition |
Description |
|
1 |
GND |
Ground wire |
|
2 |
VCC |
3.3V DC power supply |
|
3 |
NC |
Empty pin |
|
4 |
TX |
Serial port transmitting end, TTL_3.3V level |
|
5 |
RX |
Serial port receiving end, TTL_3.3V level |
|
6 |
Power - EN |
Low level to power on |
POWER - EN Control Instructions:
- Pull down <0.3V to disable the module; pull up >3V to enable the module.
- Pull from low to high during operation, with a 300mS delay to read data.
The 905nm Laser Rangefinder Module 1000m delivers precise distance measurements from 5 to 1000 meters using advanced TOF technology. Featuring a UART (TTL_3.3V) interface, it supports both single-shot and continuous modes, plus PC software for easy, standardized configuration.
