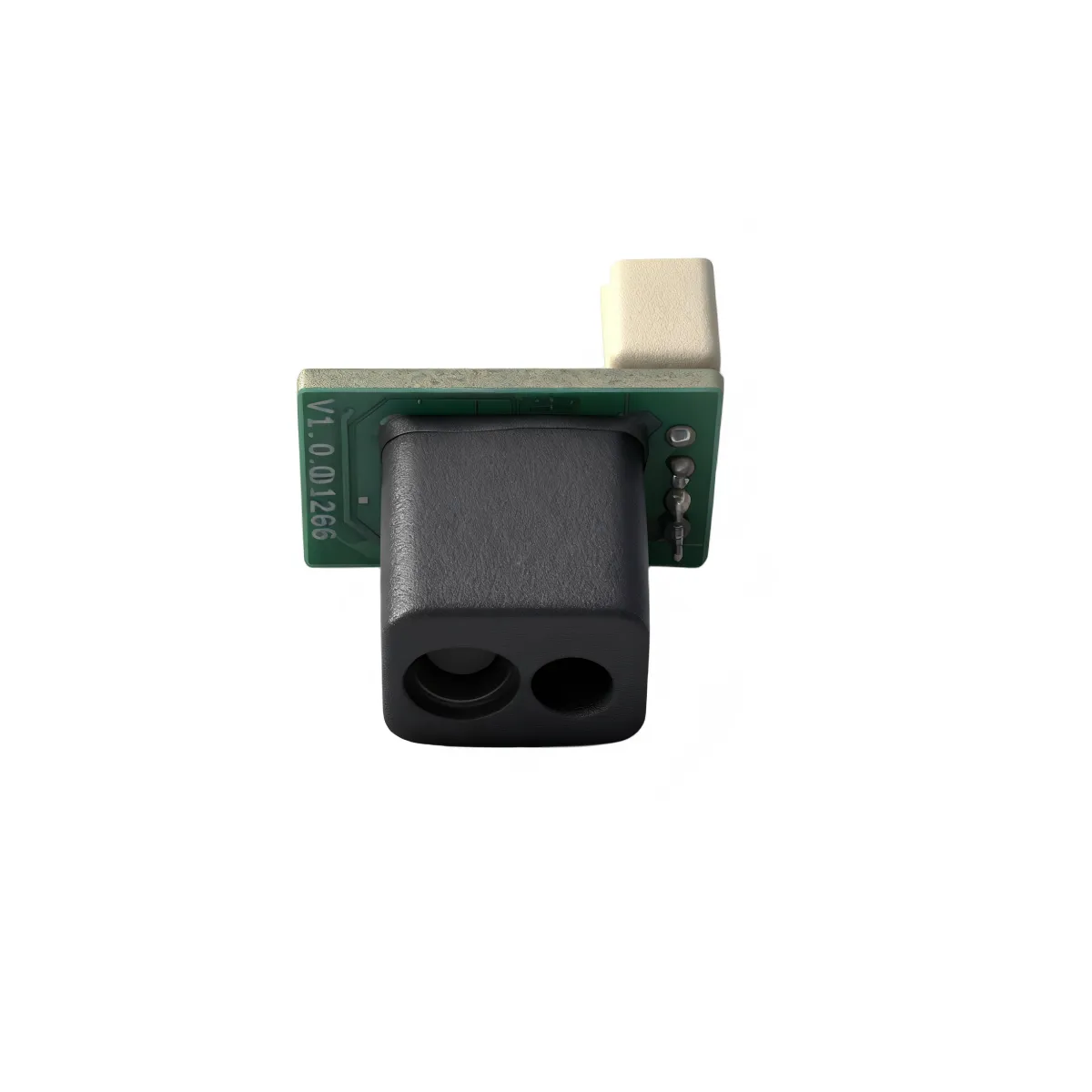

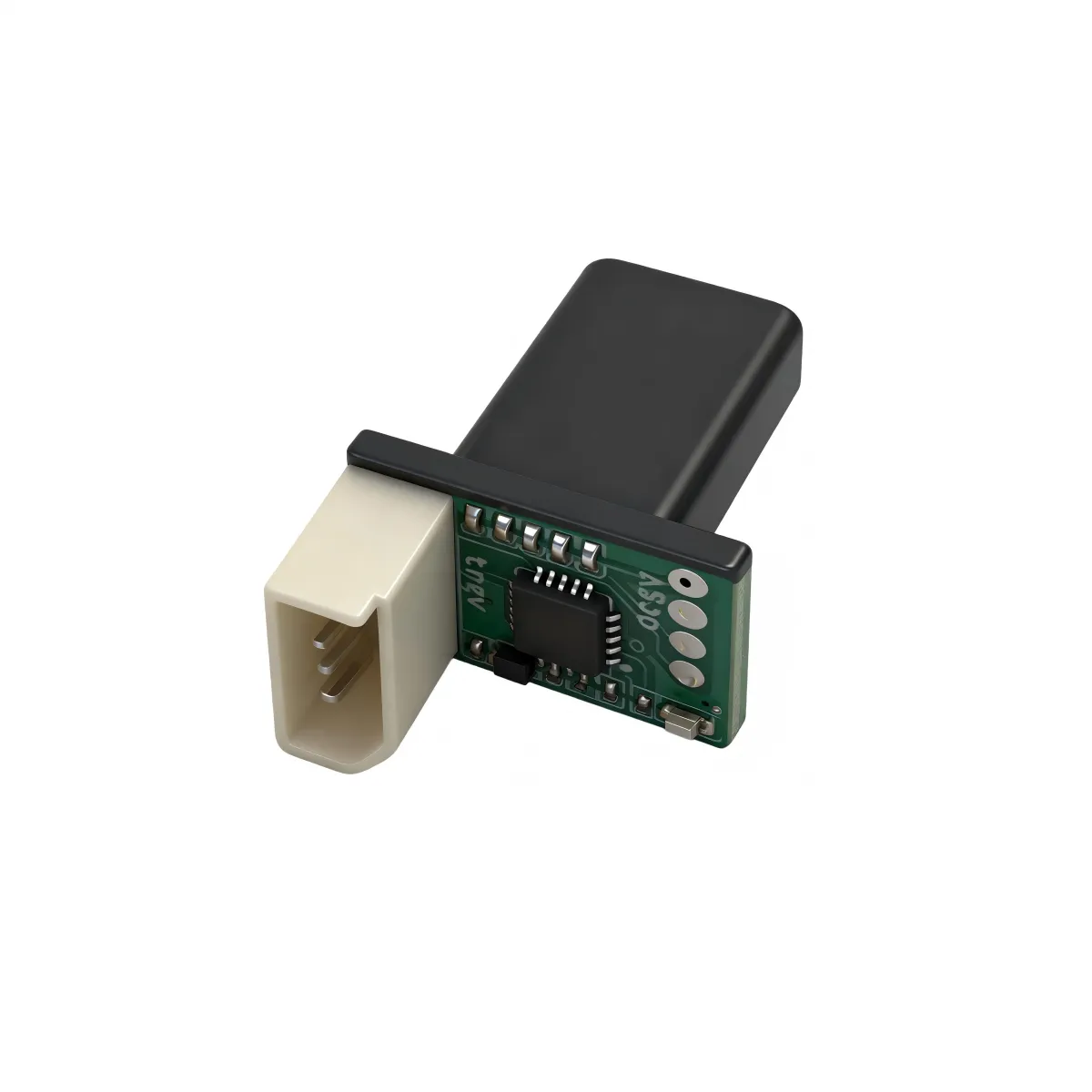

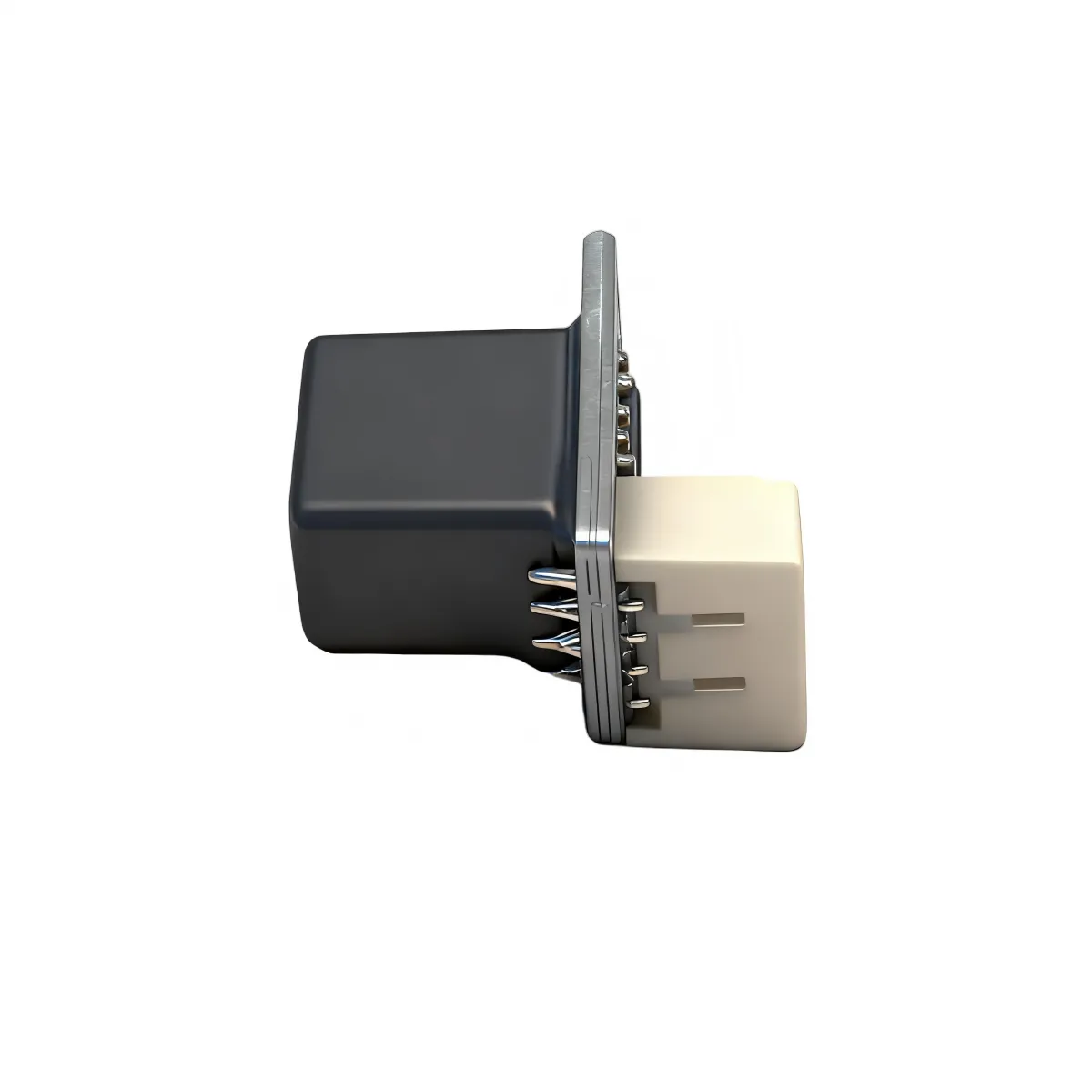

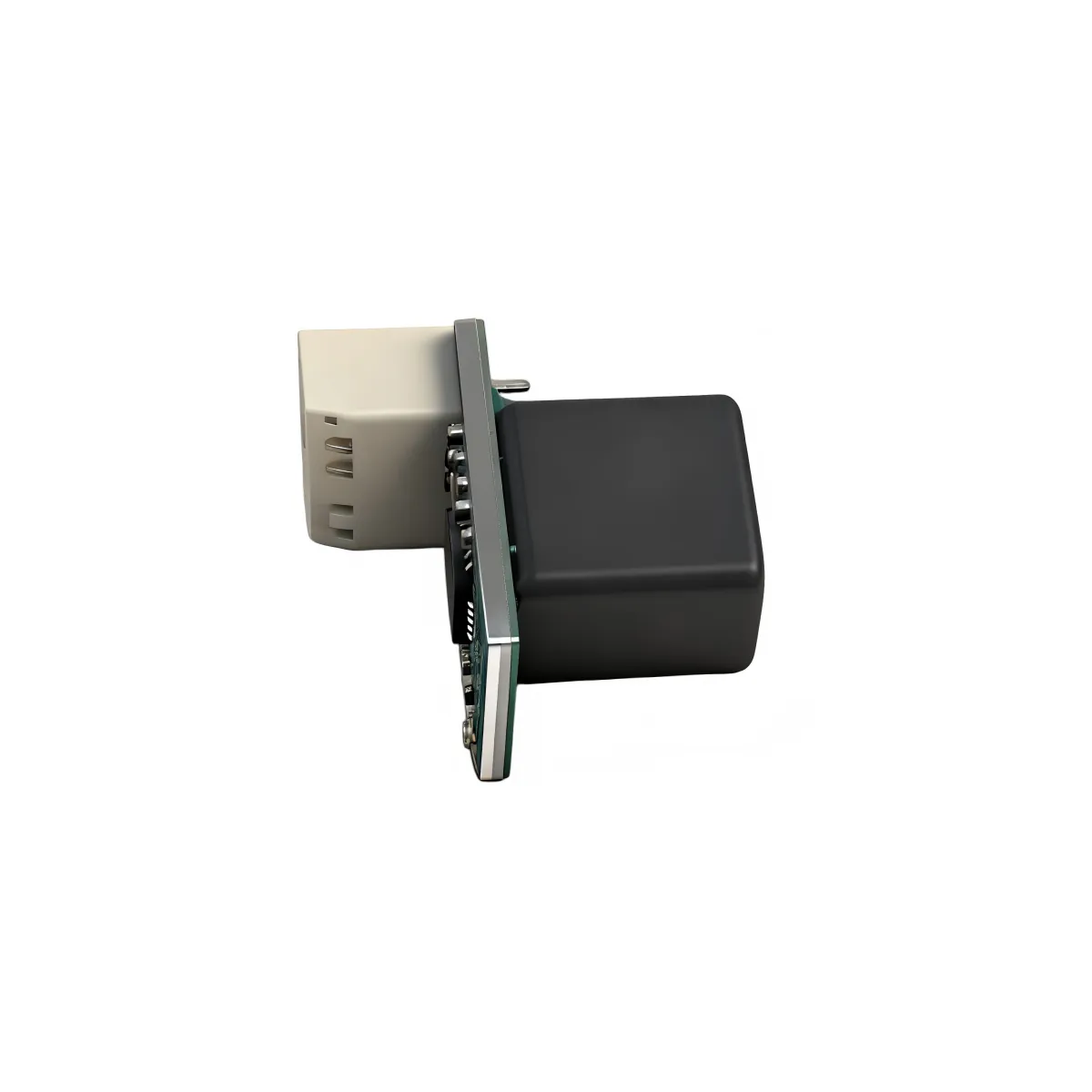

LRF10VB Single-Point LiDAR
DESCRIPTION
The LRF10VB-02 LiDAR represents a newly developed laser ranging solution rolled out by our company, tailored for applications including camera focusing, security surveillance, and squat detection. Built on the DTOF ranging principle, this product boasts a compact size, cost-effectiveness, outstanding performance, and robust resistance to ambient light interference—positioning it as an upgraded replacement for use in relevant fields. It employs the UART interface to transmit distance data, enabling straightforward operation, flexible mounting, and hassle-free expansion.
TECHNICAL SPECIFICATIONS
|
# |
Model |
LRF10VB |
|
1 |
Range |
0.05m~9m (90%reflectivity), 0.05m~5m (10%reflectivity) |
|
2 |
Frequency |
50Hz |
|
3 |
Accuracy |
±5cm (<5m), 1% (≥5m) |
|
4 |
Repeatability |
±10mm |
|
5 |
Ambient Light Immunity |
2m@70KLux2 |
|
6 |
Central Wavelength |
940nm |
|
7 |
Photobiological Safety |
Class1 |
|
8 |
FOV |
3° |
|
9 |
Wavelength for Indication |
N/A |
|
10 |
Photobiological Safety for Indication |
N/A |
|
11 |
Supply Voltage |
4.5~5.5VDC |
|
12 |
Peak Current |
5V@4.5mA |
|
13 |
Average Current |
5V@4mA |
|
14 |
Average Power Consumption |
＜0.1W（Supports low power mode） |
|
15 |
Communication Interface |
UART |
|
16 |
Protection Level |
N/A |
|
17 |
Dimension |
12 x 7.5 x 9.1mm |
|
18 |
Weight |
1g |
|
19 |
Operating Temperature |
-20℃~ +60℃ |
|
20 |
Wire Specification |
4pin 1.25mm terminal, 10cm tinned stranded wires |
|
21 |
Customization |
available in appearance / structure / output protocol |
(Note: 1. This parameter was measured at 25°C in an indoor environment.
2. This parameter was measured with a 90% reflector in an outdoor environment at 25°C.)
OUTLINE DIMENSION(mm)
PIN INTERFACE
 |
||
|
No. |
Definition / Wire Color |
User Interface |
|
1 |
TX |
RX |
|
2 |
RX |
TX |
|
3 |
GND |
External Power - |
|
4 |
5V |
External Power + |
