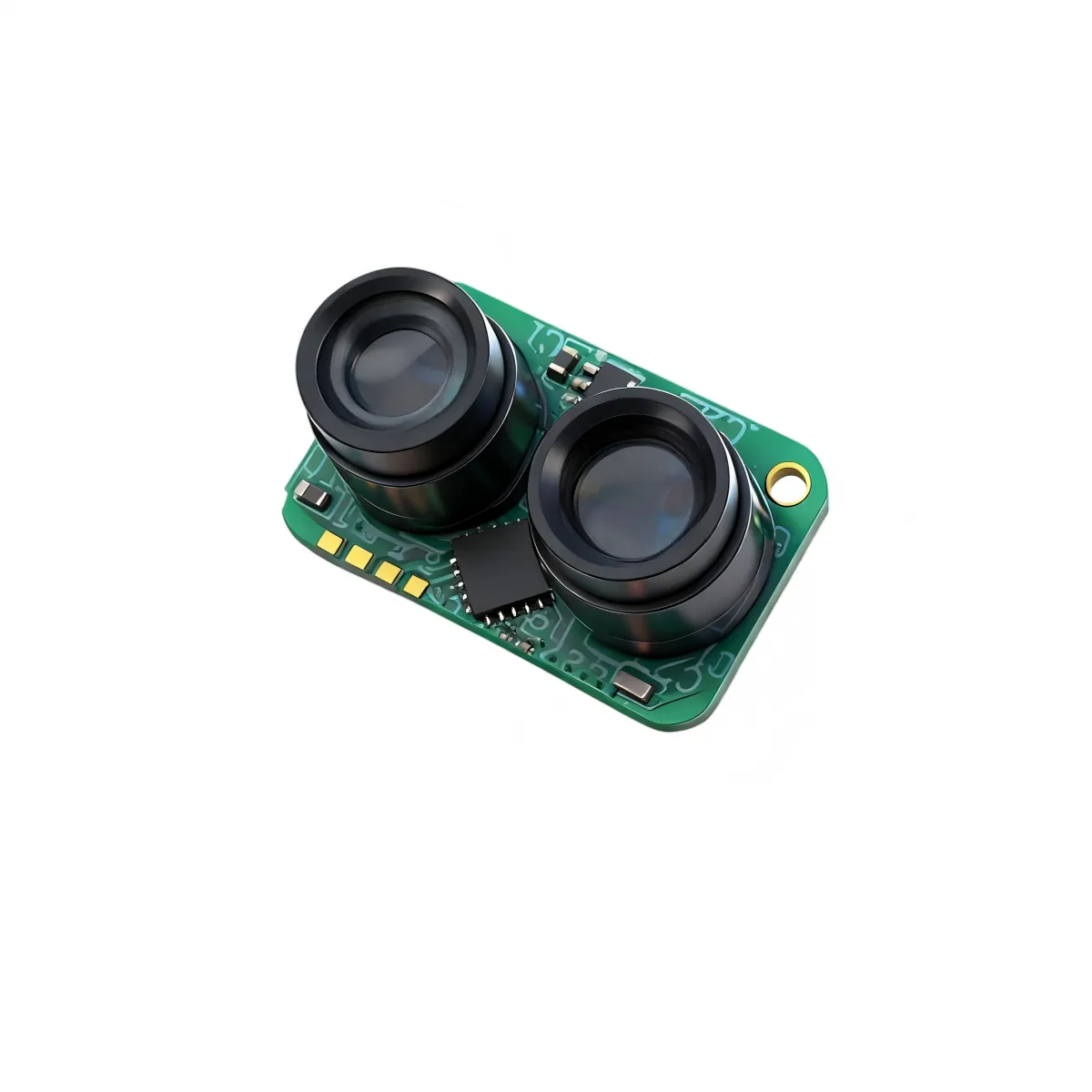

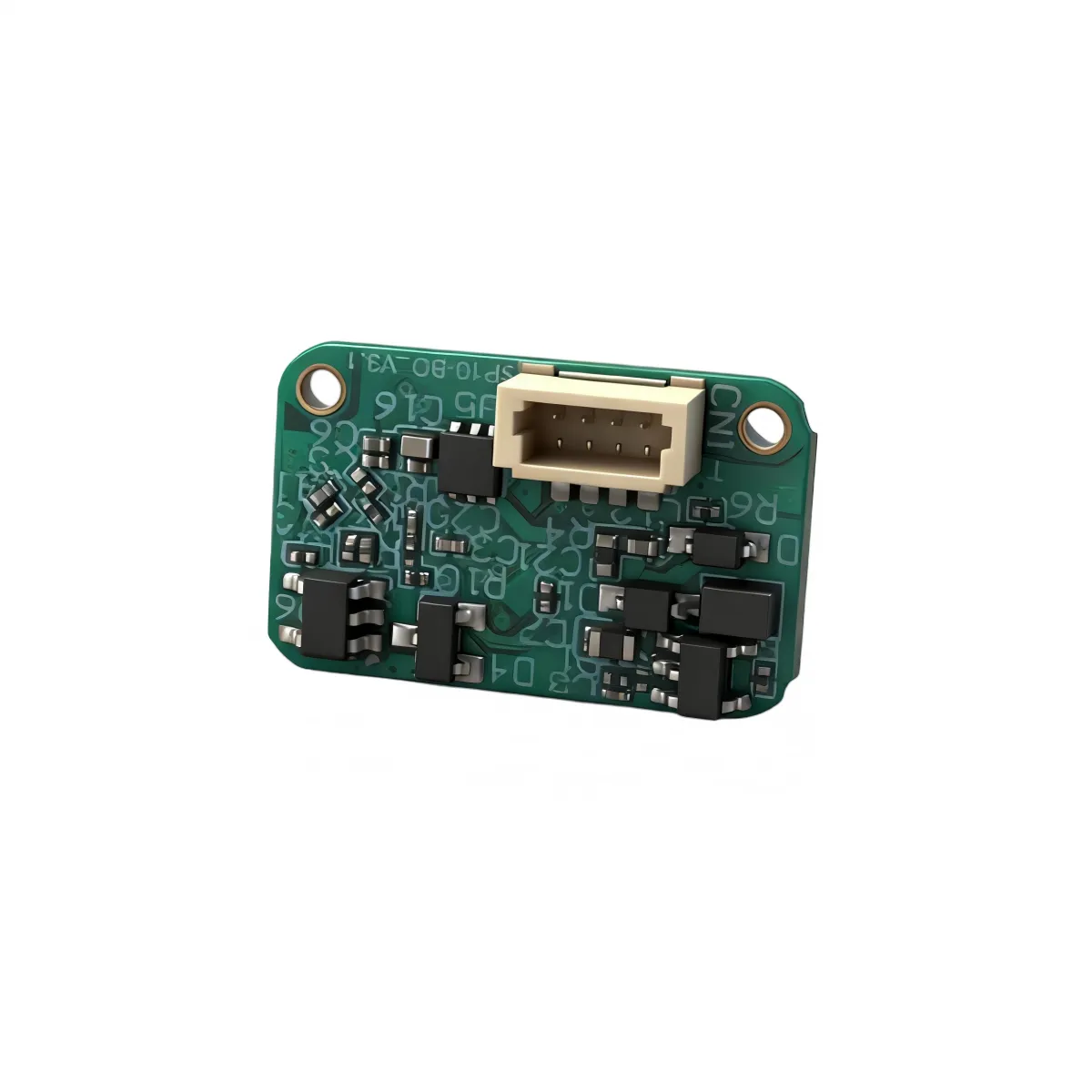

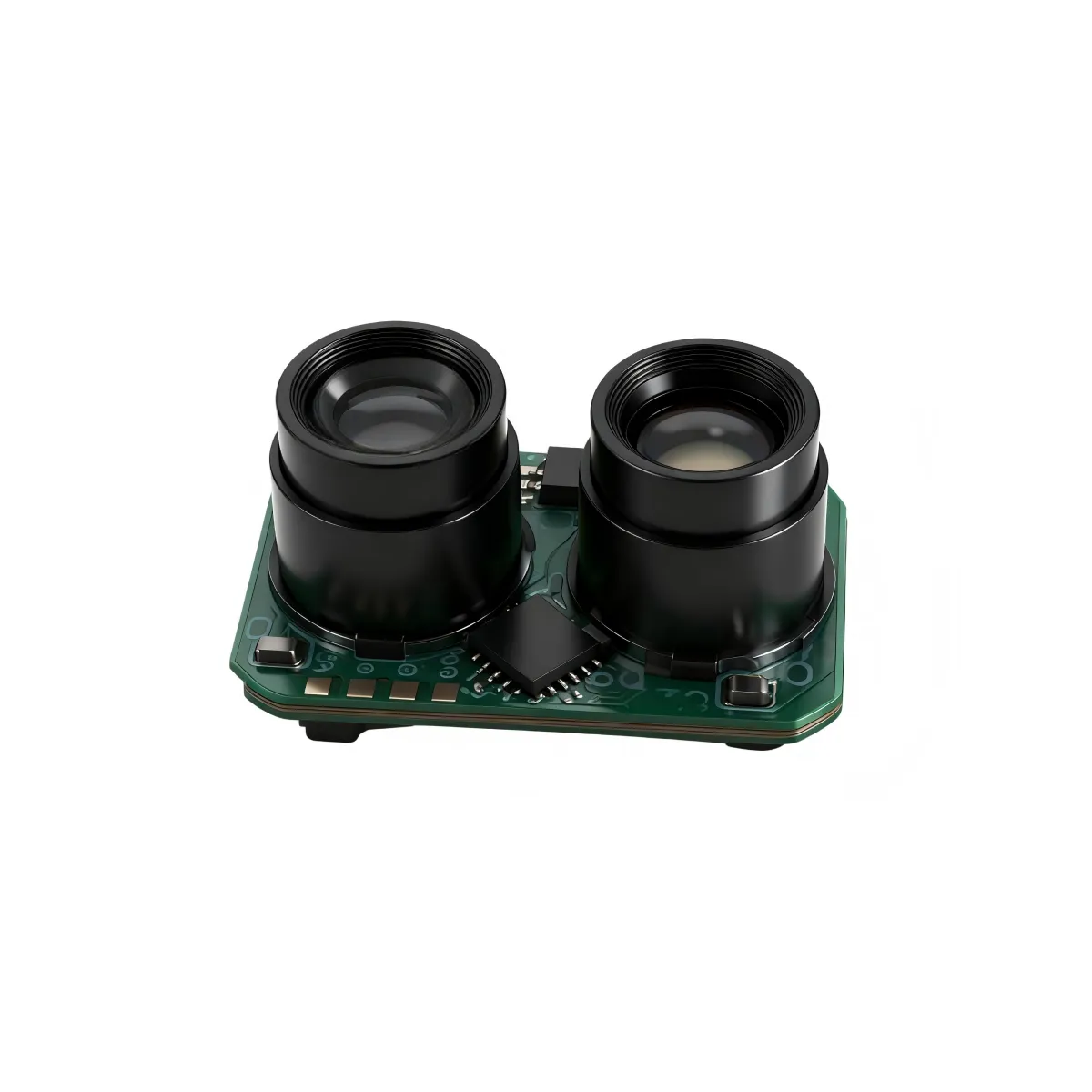

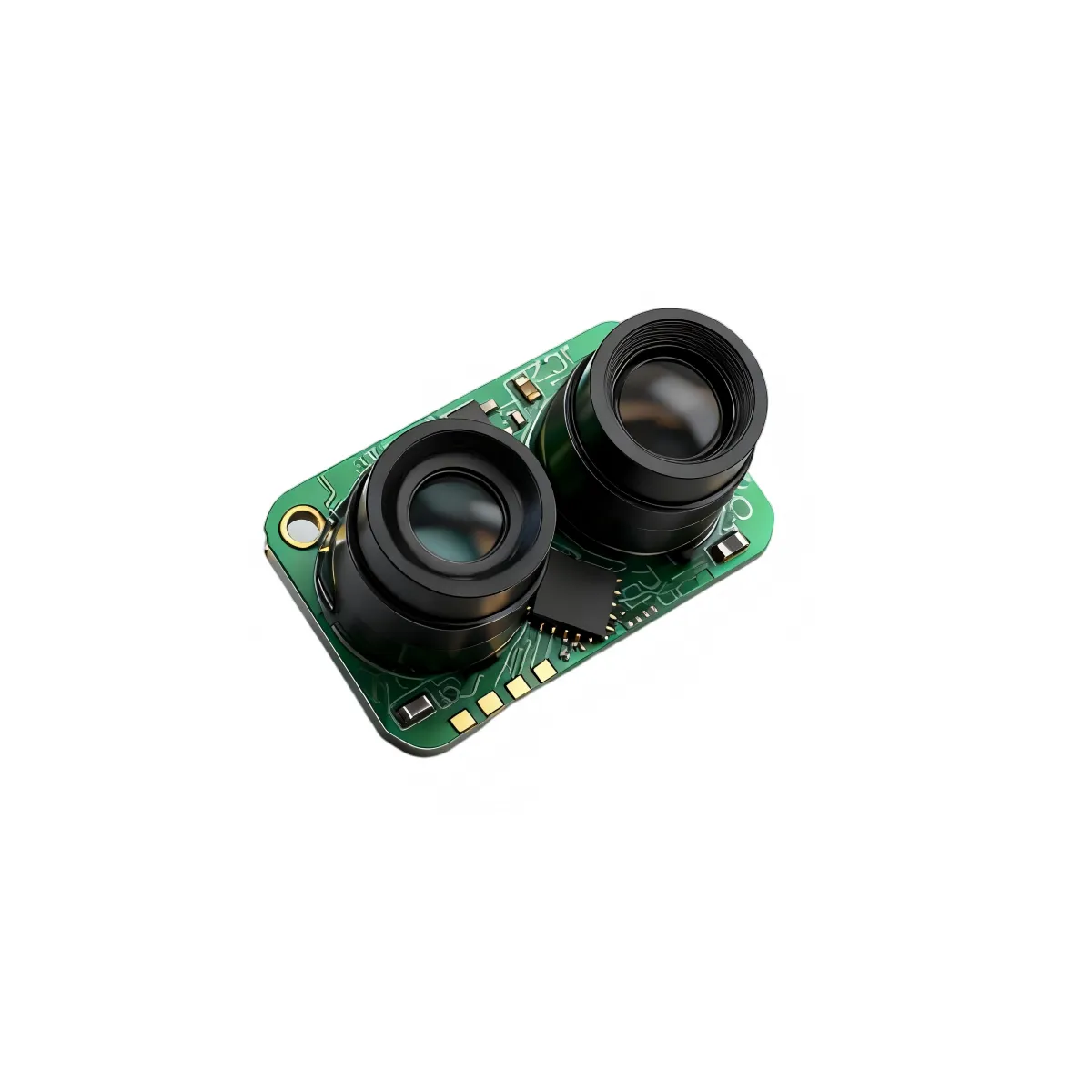

LRF50VB Single-Point LiDAR
DESCRIPTION
Our newly introduced LRF50VB-02 LiDAR is a laser ranging product specifically developed for applications including drones, sweeping robots, and industrial robots. Built around the DTOF principle, it offers a compact footprint, budget-friendly pricing, excellent performance, and robust resistance to ambient light interference. This product is user-friendly, allows flexible installation, facilitates convenient expansion, and delivers exceptional cost-effectiveness.
TECHNICAL SPECIFICATIONS
|
# |
Model |
LRF50VB |
|
1 |
Range |
0.05m～50m (90%reflectivity), 0.05m～20m (10%reflectivity) |
|
2 |
Frequency |
100Hz |
|
3 |
Accuracy |
±5cm(<5m), 1%(≥5m) |
|
4 |
Repeatability |
±30mm |
|
5 |
Ambient Light Immunity |
10m@60KLux |
|
6 |
Central Wavelength |
905nm |
|
7 |
Photobiological Safety |
Class 1 |
|
8 |
FOV |
1.9° |
|
9 |
Wavelength for Indication |
N/A |
|
10 |
Photobiological Safety for Indication |
N/A |
|
11 |
Supply Voltage |
3.3~5VDC |
|
12 |
Peak Current |
5V@70mA |
|
13 |
Average Current |
5V@40mA |
|
14 |
Average Power Consumption |
0.2W |
|
15 |
Communication Interface |
UART/IIC |
|
16 |
Protection Level |
N/A |
|
17 |
Dimension |
18.7 x 11.8 x 13.3mm |
|
18 |
Weight |
1.3g |
|
19 |
Operating Temperature |
-20℃ ~ +60℃ |
|
20 |
Wire Specification |
4pin 1.0mm terminal, 10cm tinned stranded wires |
|
21 |
Customization |
available in appearance / structure / output protocol |
(Note: 1. This parameter was measured at 25°C in an indoor environment.
2. This parameter was measured with a 90% reflector in an outdoor environment at 25°C.)
OUTLINE DIMENSION(mm)
PIN INTERFACE
 |
||
|
No. |
Definition / Wire Color |
User Interface |
|
1 |
GND (Black) |
External Power - |
|
2 |
3.3～5V (Red) |
External Power + |
|
3 |
RX （SDA）(Green) |
TX（SDA） |
|
4 |
TX（SCL） (Yellow) |
RX（SCL） |
